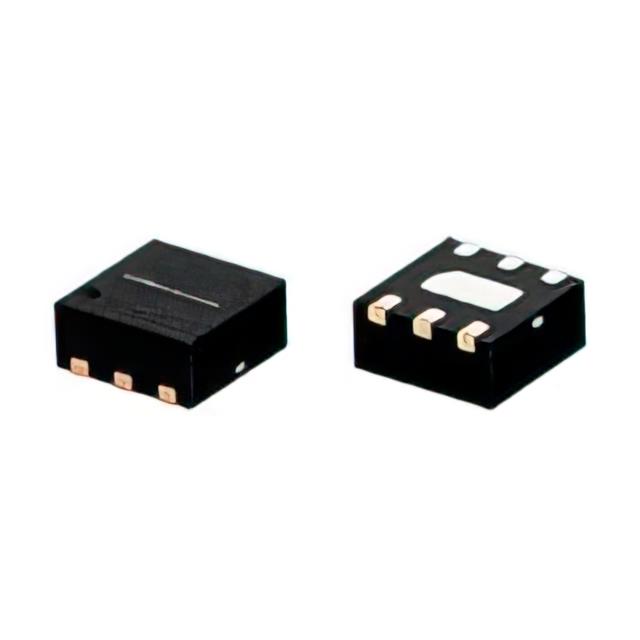

LHY-1H+
ActiveMini-Circuits
SMT LINEAR AMP, 50-6000 MHZ, 50
LHY-1H+
ActiveMini-Circuits
SMT LINEAR AMP, 50-6000 MHZ, 50
Description
General part information
LHY-1H+
RF Amplifier IC CATV, DBS, LTE, MMDS, Wireless LAN 50MHz ~ 6GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | LHY-1H+ |
|---|---|
| Current - Supply | 144 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 50 MHz |
| Gain | 14 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 1.6 dB |
| P1dB | 22.8 dBm |
| Package / Case | 6-TDFN Exposed Pad |
| RF Type | MMDS, DBS, LTE, CATV, Wireless LAN |
| Test Frequency | 3 GHz |
| Voltage - Supply (Maximum) | 5.2 V |
| Voltage - Supply (Minimum) | 4.8 V |
