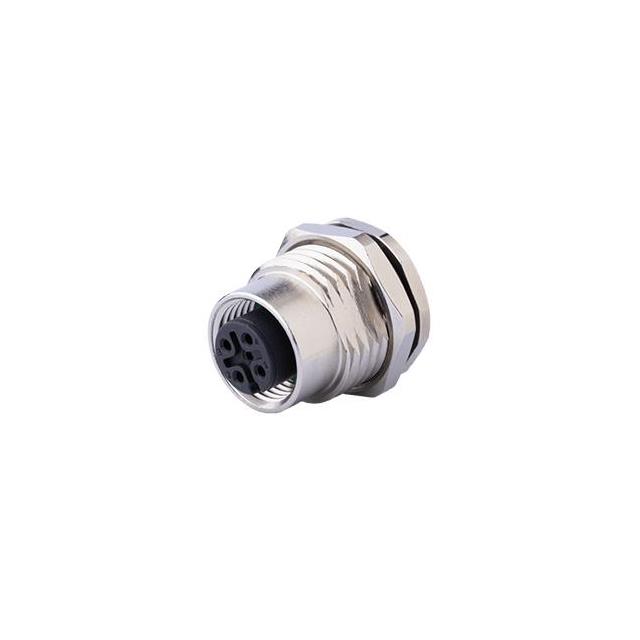

CDM1212-05A-FT-F16-67
ActiveSame Sky (Formerly CUI Devices)
5 PIN, PANEL MOUNT, SOLDER TERMI
CDM1212-05A-FT-F16-67
ActiveSame Sky (Formerly CUI Devices)
5 PIN, PANEL MOUNT, SOLDER TERMI
Description
General part information
CDM1212-05A-FT-F16-67
5 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | CDM1212-05A-FT-F16-67 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 60 V |
