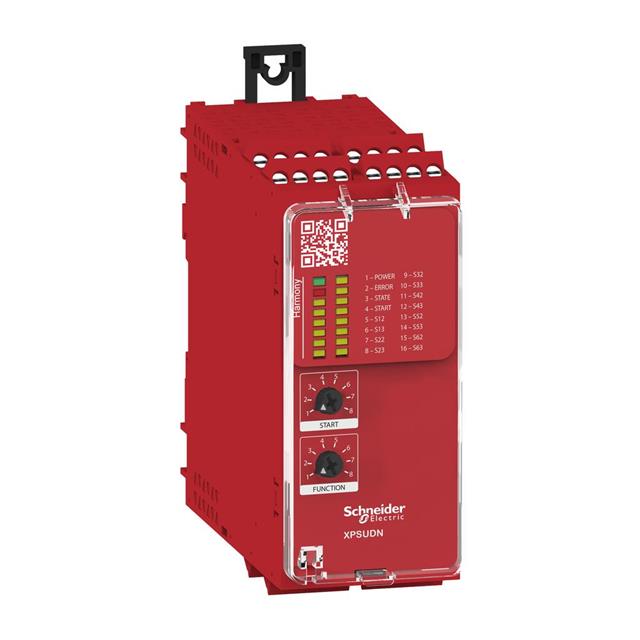

XPSUDN13AP
ActiveSCHNEIDER ELECTRIC
SAFETY MODULE, HARMONY SAFETY AU
XPSUDN13AP
ActiveSCHNEIDER ELECTRIC
SAFETY MODULE, HARMONY SAFETY AU
Description
General part information
XPSUDN13AP
Machine Safety Controller General Purpose 24VAC/DC Supply DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSUDN13AP |
|---|---|
| Approval Agency | TUV, cULus |
| Auxiliary Output Count | 4 |
| Auxiliary Output Type | Relay |
| Controller Type | General Purpose |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 6 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Safety Category | Category 4 |
| Safety Output Type | Relay |
| Safety Outputs (Count) | 7 |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
| Weight | 0.77 lb |
