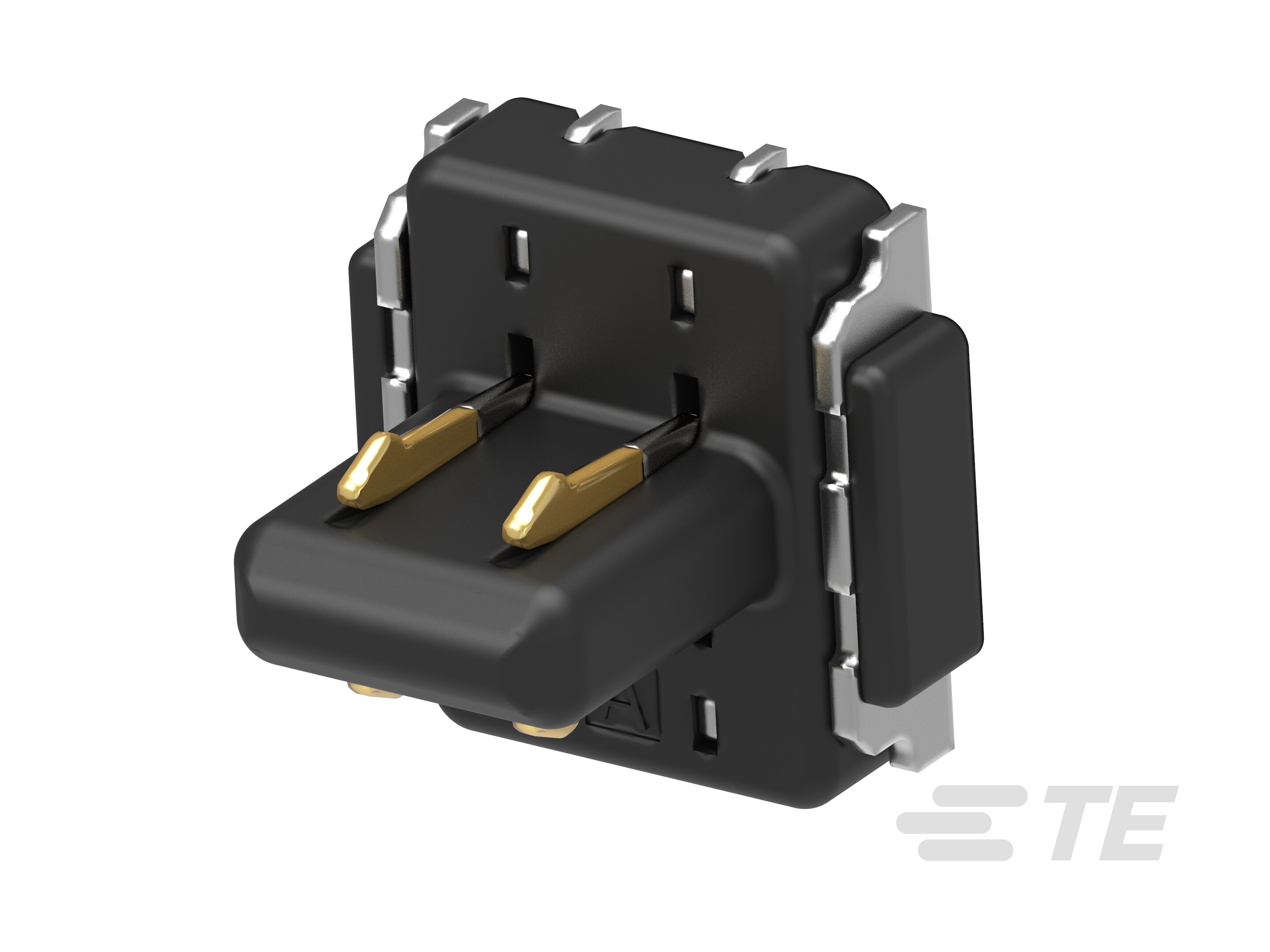

Specification	2337852-2

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	0.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.236 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
