Description
General part information

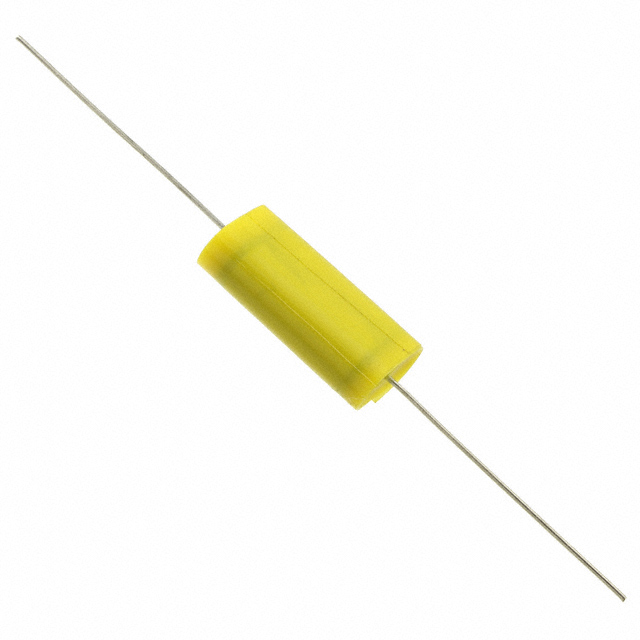

QAP2G474KRP
0.47 µF Film Capacitor 400V Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | QAP2G474KRP |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.47 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Length | 1.181 in |
| Size / Dimension Thickness | 0.362 in |
| Size / Dimension Width | 0.618 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 400 V |
