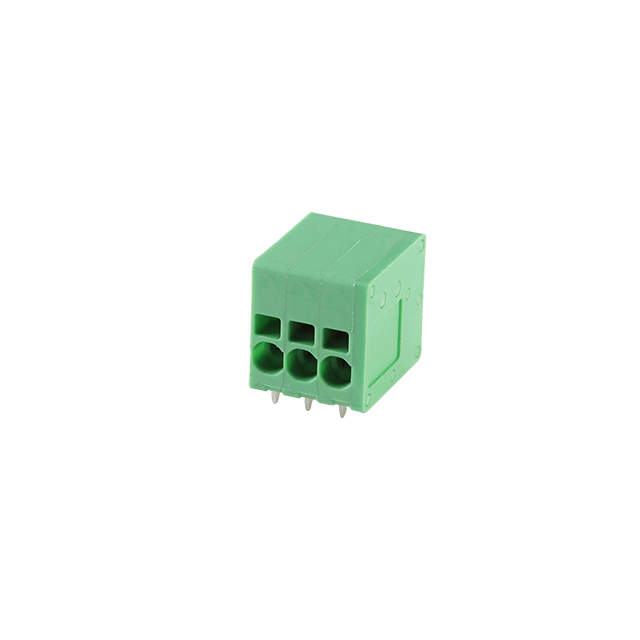

TBL-0018-350-03GR
ActiveSame Sky (Formerly CUI Devices)
FIXED TERMINAL BLOCKS 3 POLES, SCREWLESS, VERTICAL, 3.50 PITCH, 24-16 (AWG), TERMINAL BLOCK CONNECTOR
TBL-0018-350-03GR
ActiveSame Sky (Formerly CUI Devices)
FIXED TERMINAL BLOCKS 3 POLES, SCREWLESS, VERTICAL, 3.50 PITCH, 24-16 (AWG), TERMINAL BLOCK CONNECTOR
Description
General part information
TBL-0018-350-03GR
3 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TBL-0018-350-03GR |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Current | 10 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plating | Tin Plated |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
