392-033-544-103
ActiveEDAC Inc.

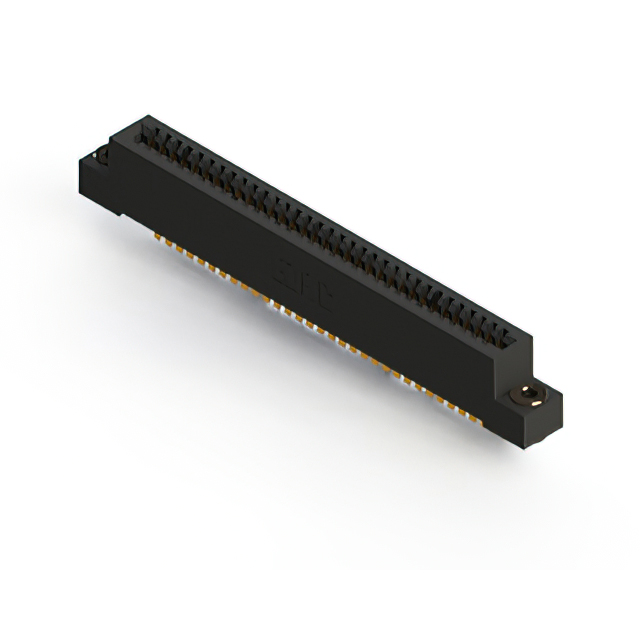

CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-033-544-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-033-544-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 33 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
392-033 Series
| Part | Contact Finish | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Gender | Card Type | Contact Type | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Flange Feature | Number of Rows | Termination Rows | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | Black | ||
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 1 | 1 | Black | 3.96 mm | 0.156 in |
EDAC Inc. | Gold | Single | Through Hole Right Angle | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Wire Wrap | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 1 | 1 | Black | 3.96 mm | 0.156 in |
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount Side Opening Unthreaded | 1 | 1 | Black | 3.25 mm | 0.128 " |
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | 1 | 1 | Black | |||
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Floating Bobbin Flush Mount | 1 | 1 | Black | 2.95 mm | 0.116 in |
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | Black | ||
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 1 | 1 | Black | 3.25 mm | 0.128 " |
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Floating Bobbin Flush Mount | 1 | 1 | Black | 2.95 mm | 0.116 in |
EDAC Inc. | Gold | Single | Through Hole | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Copper Alloy | Female | Non Specified - Single Edge | Cantilever | 33 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 33 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 1 | 1 | Black | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.58 | |
Description
General part information
392-033 Series
33 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
