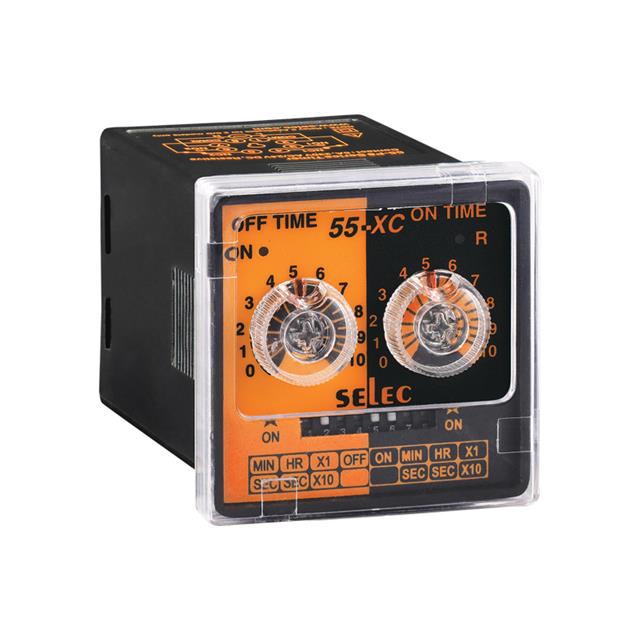

55XC-P8-CU
ActiveSelec Controls USA Inc.
RELAY TIME DELAY 10HR 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
55XC-P8-CU
ActiveSelec Controls USA Inc.
RELAY TIME DELAY 10HR 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 55XC-P8-CU |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 5 A, 24 VDC |
| Delay Time [Max] | 10 Hrs |
| Delay Time [Min] | 0 s |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC, 240 VDC |
| Voltage - Supply [Min] | 12 V, 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 39.92 | |
| 10 | $ 37.92 | |||
| 25 | $ 35.92 | |||
| 50 | $ 33.93 | |||
| 100 | $ 31.93 | |||
| 250 | $ 29.94 | |||
| Bulk | 1 | $ 82.23 | ||
Description
General part information
55XC-P Series
Interval, On-Delay Time Delay Relay DPDT (2 Form C) 0 Sec ~ 10 Hrs Delay 5A @ 250VAC/24VDC Socketable
Documents
Technical documentation and resources
No documents available
