1776296-8
ActiveTE Connectivity AMP Connectors
TSB5000831DS=EUROPA T-BLK,10MM
1776296-8
ActiveTE Connectivity AMP Connectors

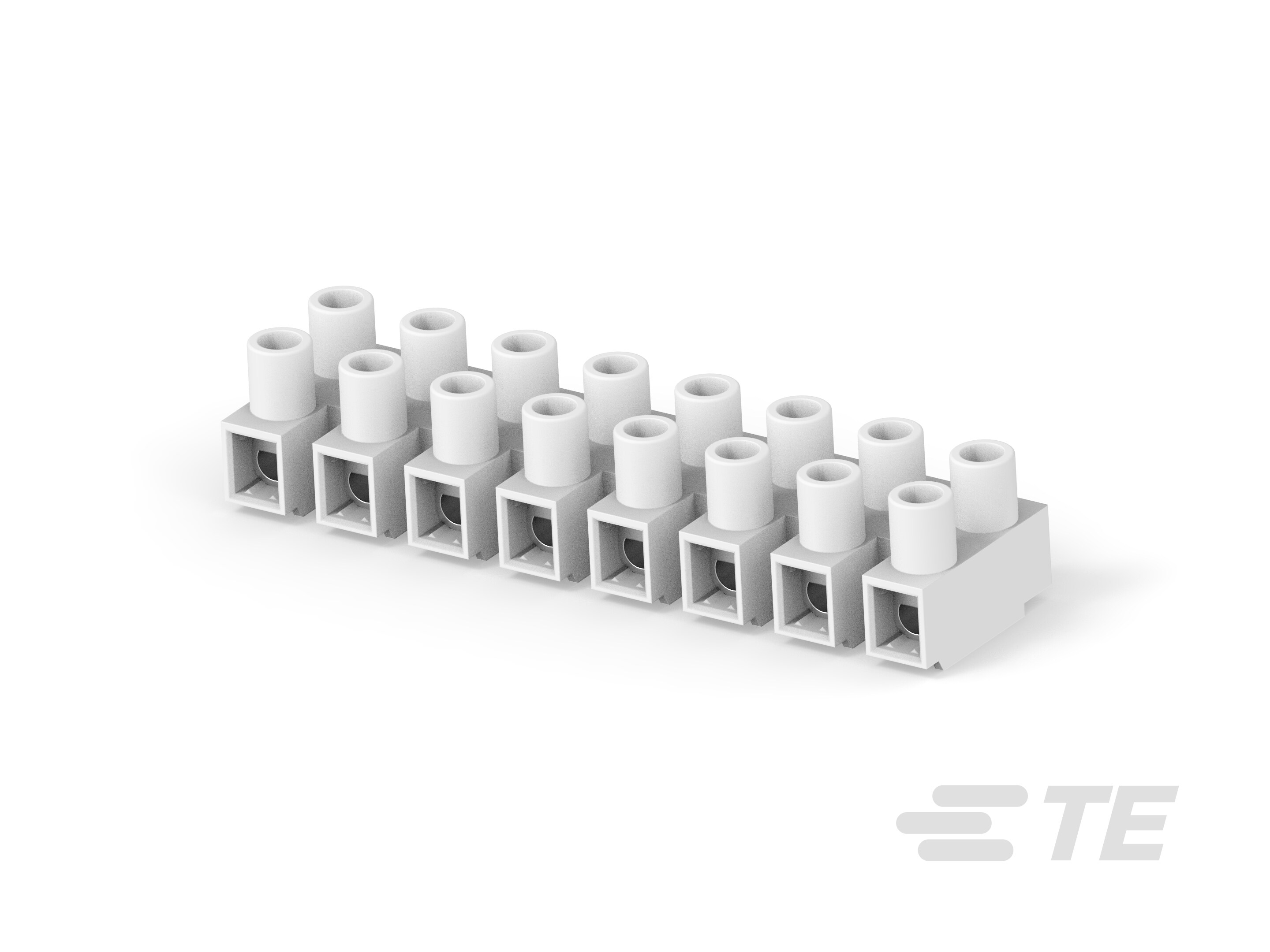

TSB5000831DS=EUROPA T-BLK,10MM
Description
General part information
1776296-8
8 Position Barrier Strip, Wire-to-Wire, 10 mm [.394 in] Centerline, 1 Row, 250 V, 22 – 10 AWG / 22 – 12 AWG, .3 – 3 mm² / .3 – 6 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776296-8 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Natural |
| Current Rating | 30 A |
| Number of Circuits | 8 |
| Number of Rows | 2 |
| Number of Wire Entries | 16 |
| Pitch | 0.394 in |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
