2408290-2
ActiveTE Connectivity AMP Connectors

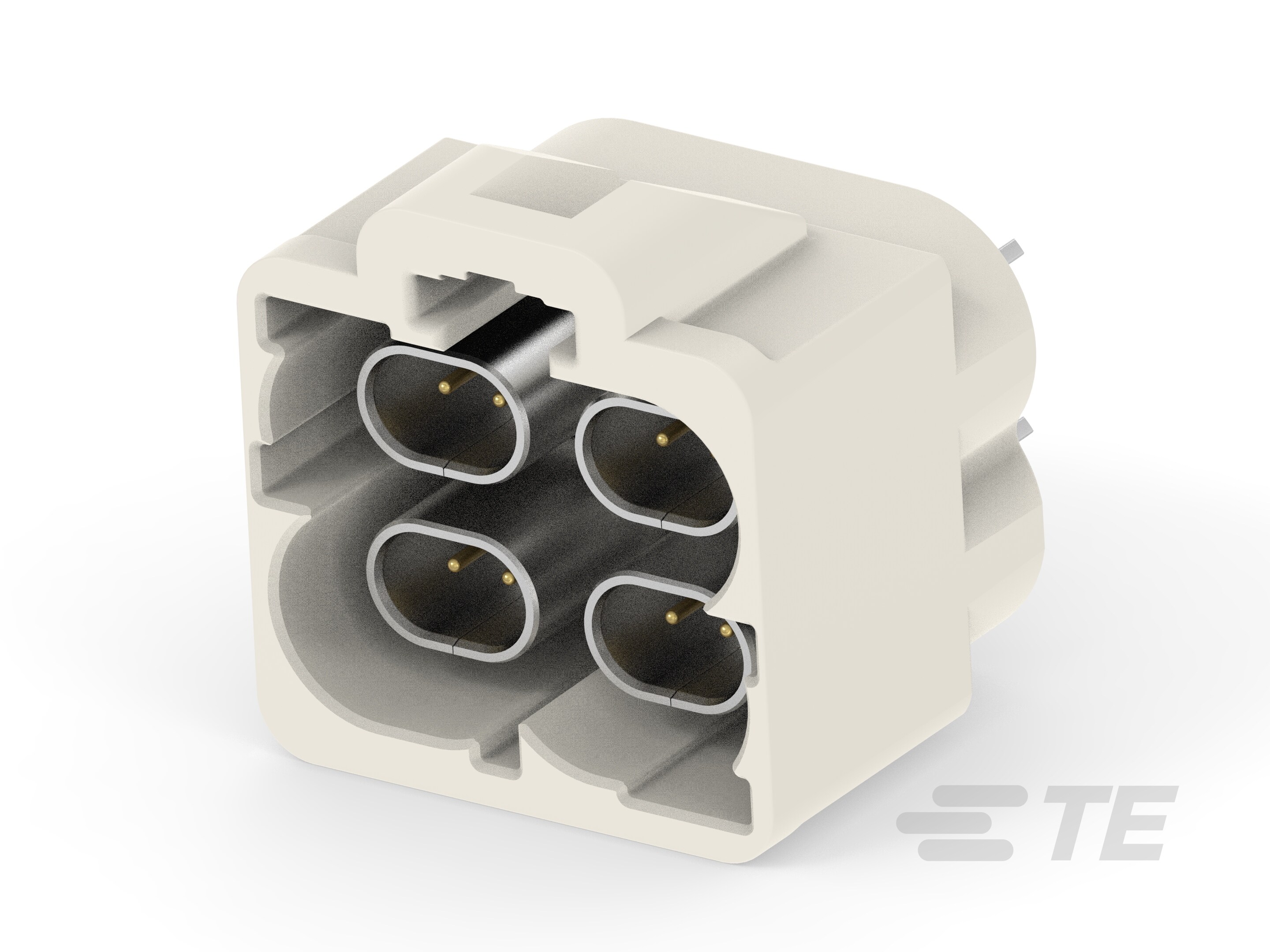

GEMNET,ASSY,4P 180DEG UNSEALED,COD B
2408290-2
ActiveTE Connectivity AMP Connectors
GEMNET,ASSY,4P 180DEG UNSEALED,COD B
Description
General part information
2408290-2
Cable-to-Board, Shielded, Vertical, 8 Position, Board Mount, B Code, 2 mm [.079 in] Centerline, -40 – 105 °C [-40 – 221 °F], Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2408290-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Length - Post | 0.047 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2 A |
| Fastening Type | Latch Holder |
| Insulation Color | White |
| Insulation Height | 0.628 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.079 in |
| Row Spacing - Mating | 0.236 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 60 V |
