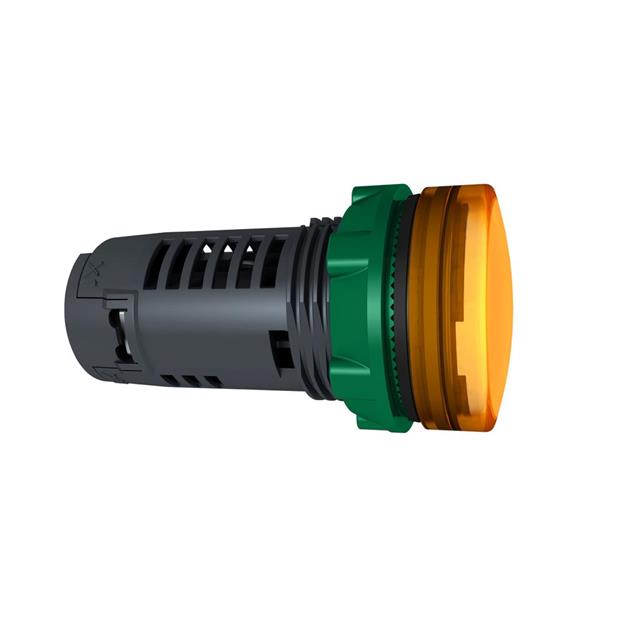

XB5EVM5

XB5EVM5

Active
SCHNEIDER ELECTRIC

LED PANEL MOUNT INDICATOR, ROUND, ORANGE, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13

Find alt
XB5EVM5

XB5EVM5

Active
SCHNEIDER ELECTRIC

LED PANEL MOUNT INDICATOR, ROUND, ORANGE, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13

Find alt

Description

General part information

XB5EVM5

Harmony XB5 plain lens monolithic orange pilot light is supplied with 230 to 240VAC, uses an integral LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colours and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is IP66 / IP67 / IP69 / IP69K impact resistant, dust resistant, water resistant and vibration resistant making it ideal for operation in harsh environments.

Technical Specifications

Parameters and characteristics for this part

SpecificationXB5EVM5
Current14 mA
Ingress ProtectionIP69, IP67, NEMA 4X, 13, IP69K, IP66
Lens ColorOrange
Lens Diameter29 mm
Lens StyleRound, Flat Top
Panel Cutout Dimension0.87 "
Panel Cutout ShapeRound
RatingsAC
Termination StyleScrew Terminal
TypeLED
Voltage (Max)240 V
Voltage (Min)230 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part
