Description
General part information

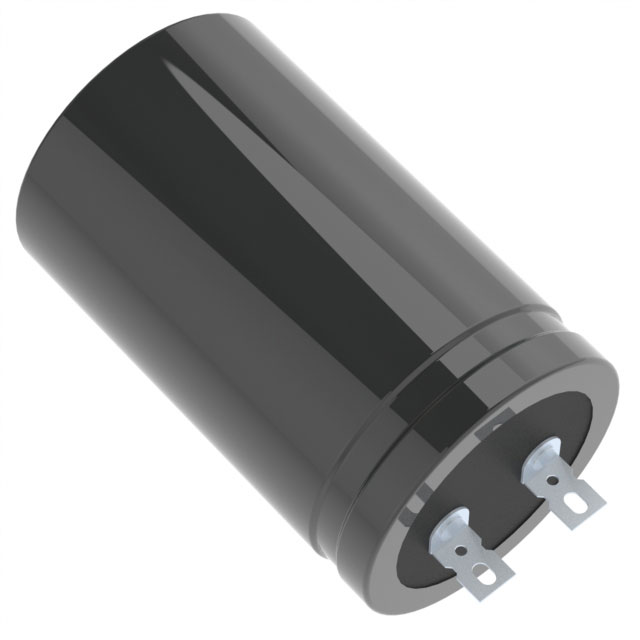

LKG1J103MKZS
10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Solder Lug 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LKG1J103MKZS |
|---|---|
| Applications | Audio |
| Capacitance | 10000 µF |
| Height - Seated (Max) | 3.268 in |
| Lead Spacing | 0.709 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - Solder Lug |
| Polarization | Polar |
| Ripple Current | 6.2 A |
| Size / Dimension Diameter | 1.969 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
