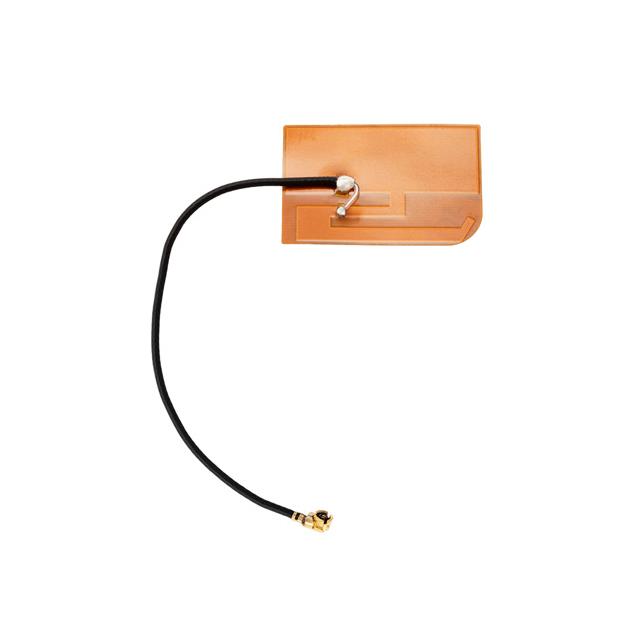

HG2402FPU-100IPEX
ActivePasternack
ANT PCB 2400MHZ 2.5DBI IPEX CON
HG2402FPU-100IPEX
ActivePasternack
ANT PCB 2400MHZ 2.5DBI IPEX CON
Description
General part information
HG2402FPU-100IPEX
RF ANTENNA Bluetooth, WLAN PCB Trace I-PEX Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2402FPU-100IPEX |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Bluetooth, WLAN |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2.6 dBi |
| Height (Max) | 0.006 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | I-PEX |
| VSWR | 2 |
