Description
General part information

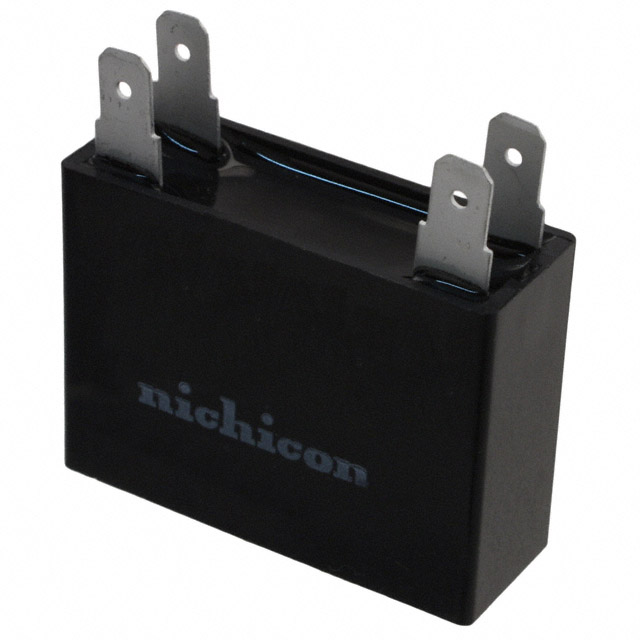

EEC2E505HQA402
5 µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box
Technical Specifications
Parameters and characteristics for this part
| Specification | EEC2E505HQA402 |
|---|---|
| Applications | Motor Run |
| Capacitance | 5 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.102 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Rectangular Box |
| Size / Dimension Length | 1.457 in |
| Size / Dimension Width | 0.531 in |
| Termination | Disconnect, Quick Connect |
| Tolerance (Negative) | 5 % |
| Tolerance (Positive) | 10 % |
| Voltage Rating - AC | 250 V |
