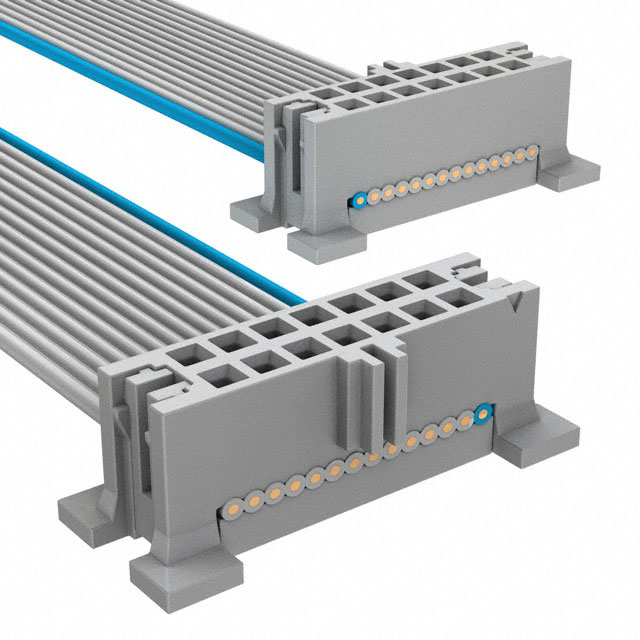

Specification	45114-010030-3749/14-D-6

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Polarizing Key
Length	0.5 ft
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

45114 Series

Part	Shielding	Length	Pitch - Connector	Number of Positions	Contact Finish	Number of Rows	Color	Contact Finish Thickness	Features	Pitch - Cable	Cable Termination	Connector Type	Row Spacing	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mounting Type	Wire Type	Contact Type	Pitch	Wire Gauge
3M Electronic Specialty 45114-010030-7700/14-H-36	Unshielded	3 ft	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Socket
3M Electronic Specialty 45114-010030-7700/14-B-06	Unshielded	0.5 ft	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Cable
3M Electronic Specialty 45114-010030-7700/14-D-12	Unshielded	12 in	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Reversed Socket to Socket
3M Electronic Specialty 45114-010030-7700/14-A-36	Unshielded	3 ft	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Cable
3M Electronic Specialty 45114-010030-7700/14-C-12	Unshielded	12 in	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Socket
3M Electronic Specialty 45114-010030-7700/14-C-06	Unshielded	0.5 ft	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Socket
3M Electronic Specialty 45114-010030-7700/14-F-24	Unshielded	24 in	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Reversed Socket to Socket
3M Electronic Specialty 45114-010030-3749/14-S-6	Unshielded	0.5 ft	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Cable
3M Electronic Specialty 45114-000000				14	Gold	2		0	Feed Through		IDC	Receptacle	0.05 in	Flash	Flash	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.05 in	30 AWG
3M Electronic Specialty 45114-010030-7700/14-C-24	Unshielded	24 in	0.05 in	14	Gold	2	Gray Ribbon	30 µin	Polarizing Key	0.025 in	IDC	Socket to Socket
