Description
General part information

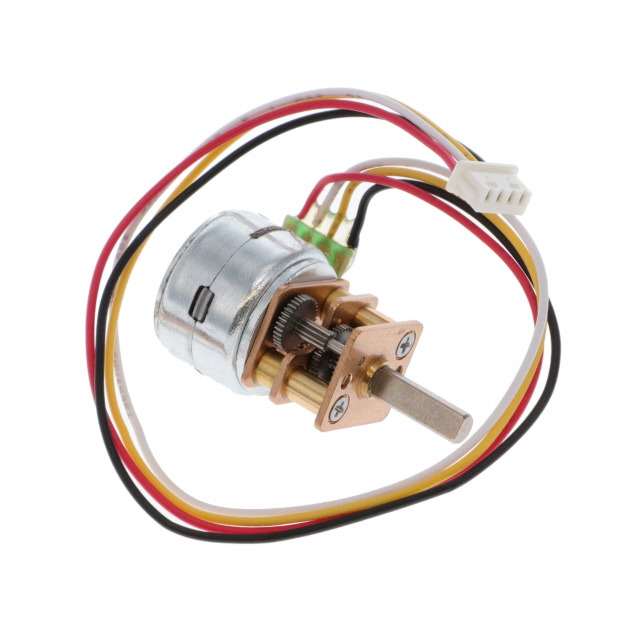

FIT0503
Stepper Motor Frame Size Step 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0503 |
|---|---|
| Coil Resistance | 30 Ohms |
| Diameter - Shaft | 0.118 in |
| Length - Shaft and Bearing | 0.394 in |
| Step Angle | 18 ° |
| Termination Style | Wire Leads with Connector |
| Voltage - Rated | 12 VAC |
| Weight | 0.031 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
