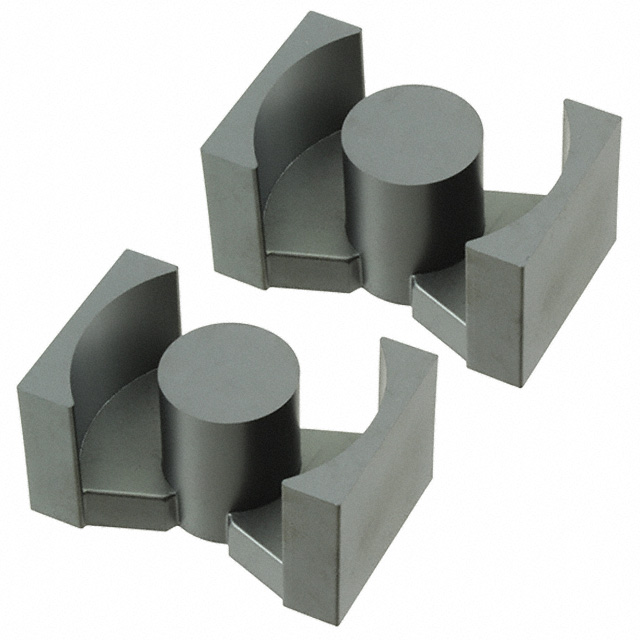

Specification	B65879A0000R095

Core Factor (ΣI/A) mm⁻¹	0.314 mm⁻¹
Core Type	PQ
Effective Area (Ae)	154.2 mm²
Effective Length (le)	48.4 mm
Effective Magnetic Volume (Ve)	7460 mm³
Effective Permeability (µe)	1895
Finish	Uncoated
Gap	Ungapped
Height	0.404 in
Inductance Factor (Al)	7.6 µH
Initial Permeability (µi)	2000
Length	1.26 in
Material	N95
Minimum Core Cross Section (Amin) (mm²)	127.5 mm²
Package Length	32 mm
Package Name	PQ
Package Width	20 mm
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.866 in
