9001KP36LGG31
ObsoleteSCHNEIDER ELECTRIC
PILOT LIGHT 48V 30MM TYPE K +OPT
9001KP36LGG31
ObsoleteSCHNEIDER ELECTRIC
PILOT LIGHT 48V 30MM TYPE K +OPT
Description
General part information
9001KP36LGG31

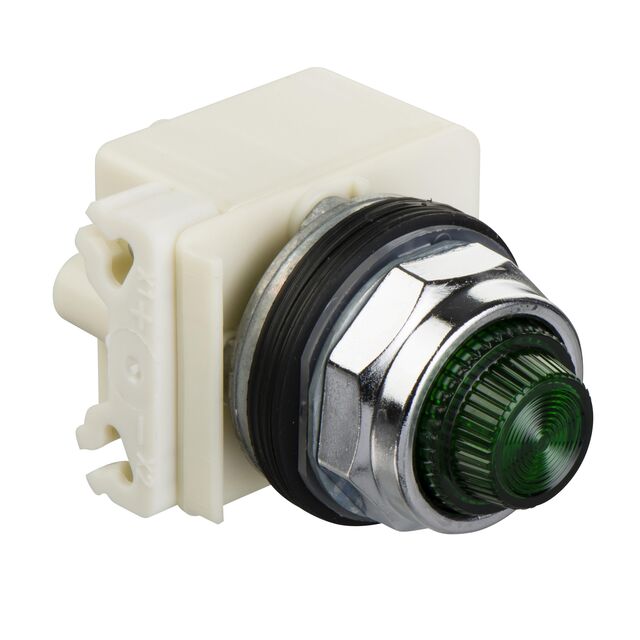

LED Panel Indicator Green Fresnel 48V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP36LGG31 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Diameter | 30 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Fresnel |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage | 48 V |
