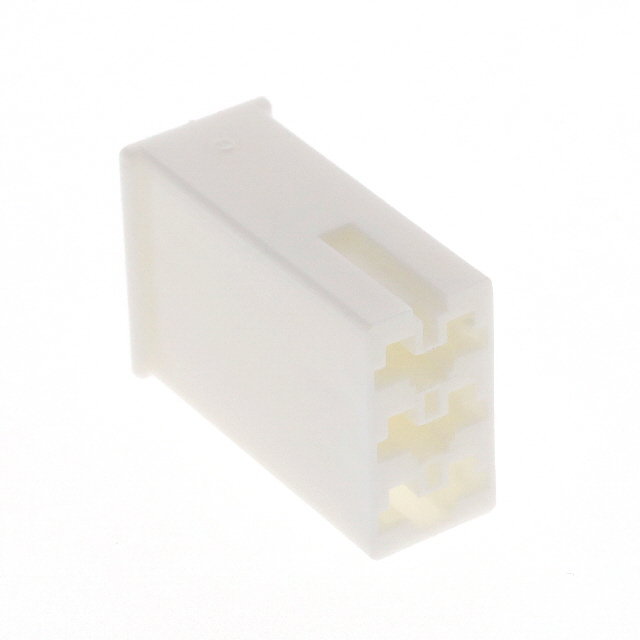

Specification	1-1743068-1

Color	Natural
For Use With/Related Products	Quick Connects, 0.187" (4.75mm) Quick Connects
Gender	Female, Receptacle
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Related Product Length	0.187 in
Related Product Thickness	0.187 in
Stacking Direction	Top to Bottom
Style	Housing
Terminal Size	0.187 in
Terminal Type	Disconnect, Quick Connect

Positive Lock 187 Series

...

Part	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Length - Overall	Contact Finish	Gender	Terminal Type	Tab Thickness	Contact Material	Tab Width	Termination	Tab Length	Related Product Length	For Use With/Related Products	Related Product Thickness	Color	Terminal Size	Style	Stacking Direction	Number of Positions	Insulation Diameter (Min)	Insulation Diameter (Max)	Terminal Angle	Note	Material
TE Connectivity AMP Connectors 1318306-1	Free Hanging (In-Line)	18 AWG	14 AWG	Non-Insulated	0.85 in	Tin	Female	Standard	0.032 in	Brass	0.187 in	Crimp	0.236 in
TE Connectivity AMP Connectors 173724-5	Free Hanging (In-Line)	20.5 AWG	14 AWG	Non-Insulated	0.677 in	Tin	Female	Standard	0.02 in	Phosphor Bronze	0.187 in	Crimp	0.287 in
TE Connectivity AMP Connectors 1-172075-1	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Natural	0.187 in	Housing	Top to Bottom	3
TE Connectivity AMP Connectors 2390259-1	Free Hanging (In-Line)	16 AWG	14 AWG	Non-Insulated	0.699 in	Tin	Female	Standard	0.031 in	Brass	0.187 in 0.22 in	Crimp	0.197 in									0.118 in	0.169 in
TE Connectivity AMP Connectors 1217096-2	Free Hanging (In-Line)	18 AWG	14 AWG	Non-Insulated	0.67 in	Tin	Female	Standard	0.032 in	Brass	0.187 in	Crimp	0.255 in
TE Connectivity AMP Connectors 2232342-1	Free Hanging (In-Line)			Non-Insulated		Tin	Female	Angled Flag	0.02 in	Brass	0.187 in	Crimp	0.248 in											90 °
TE Connectivity AMP Connectors 3-2299287-1	Free Hanging (In-Line) Right Angle	24 AWG	19.5 AWG	Mating End Insulated		Tin	Female	Angled Flag	0.02 in	Brass	0.187 in	Crimp										0.06 in	0.11 in	90 °
TE Connectivity AMP Connectors 173723-1	Free Hanging (In-Line)	26 AWG	19.5 AWG	Non-Insulated	0.677 in	Tin	Female	Standard	0.02 in	Brass	0.187 in	Crimp	0.287 in									0.051 in	0.142 in
TE Connectivity AMP Connectors 172074-6	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Blue	0.187 in	Housing		1
TE Connectivity AMP Connectors 175578-1	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Natural	0.187 in	Housing	Top to Bottom	2				Contacts Not Included	Nylon
