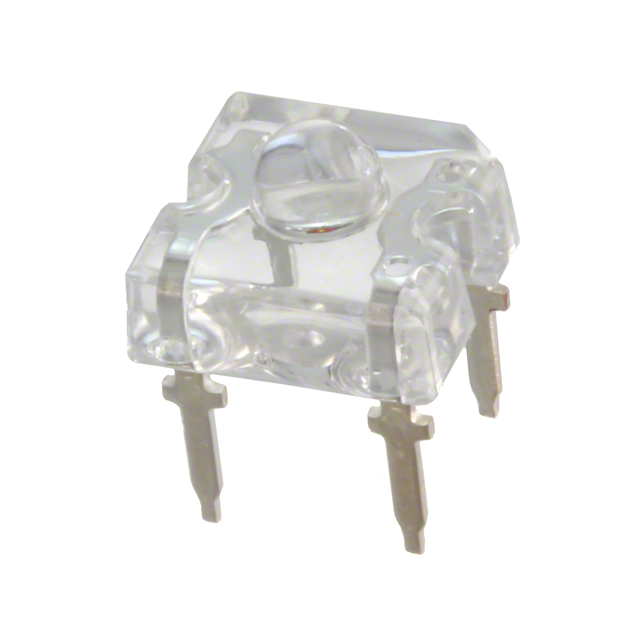

Specification	CP41B-AHS-CN0Q0454

Color	Amber
Configuration	Standard
Current - Test	70 mA
Height (Max)	6.15 mm
Lens Color	Amber
Lens Diameter	3 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Mounting Type	Through Hole
Package Length	5.08 mm
Package Name	P4, 4-DIP
Package Width	5.08 mm
Size / Dimension Length	7.6 mm
Size / Dimension Width	7.6 mm
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2.5 V
Wavelength - Dominant	591 nm

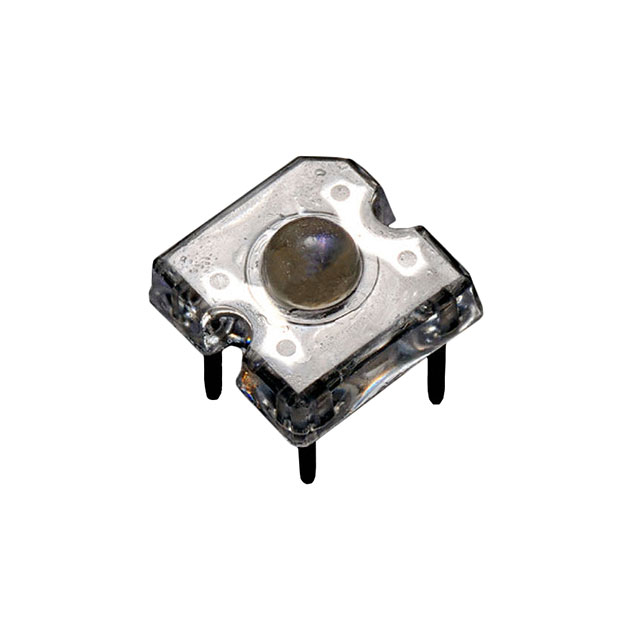

CP41B Series

Part	Viewing Angle	Wavelength - Dominant	Configuration	Height (Max)	Voltage - Forward (Vf) (Typ)	Package Name	Size / Dimension Length	Size / Dimension Width	Lens Diameter	Lens Style	Package Width	Package Length	Current - Test	Color	Lens Transparency	Mounting Type	Lens Color	Wavelength - Dominant (Color Temperature)	Millicandela Rating
CreeLED, Inc. CP41B-RFS-CN0P0EE4	70 °	628 nm	Standard	6.55 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Red	Clear	Through Hole
CreeLED, Inc. CP41B-AHS-CN0Q0354	100 °	591 nm	Standard	6.15 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Amber	Clear	Through Hole	Amber
CreeLED, Inc. CP41B-RFS-CN0P0EE4	70 °	628 nm	Standard	6.55 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Red	Clear	Through Hole
CreeLED, Inc. CP41B-WGS-CM0P0134	90 °		Standard	5.94 mm	3.6 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	30 mA	Cool White	Clear	Through Hole		9000 K	3000 mcd
CreeLED, Inc. CP41B-RFS-CM0P0EE4	70 °	628 nm	Standard	6.55 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Red	Clear	Through Hole
CreeLED, Inc. CP41B-ADS-CL0P0264	40 °	591 nm	Standard	6.85 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Amber	Clear	Through Hole	Amber
CreeLED, Inc. CP41B-WGS-CL0P0134	90 °		Standard	5.94 mm	3.6 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	30 mA	Cool White	Clear	Through Hole		9000 K	3000 mcd
CreeLED, Inc. CP41B-RDS-CL0P0EE4	40 °	628 nm	Standard	6.85 mm	2.5 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	70 mA	Red	Clear	Through Hole
CreeLED, Inc. CP41B-WES-CN0P0134	60 °		Standard	6.55 mm	3.6 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	30 mA	Cool White	Clear	Through Hole		9000 K	5200 mcd
CreeLED, Inc. CP41B-WES-CM0P0244	60 °		Standard	6.55 mm	3.6 V	4-DIP P4	7.6 mm	7.6 mm	3 mm	Domed Top Round	5.08 mm	5.08 mm	30 mA	Cool White	Clear	Through Hole		9000 K	5200 mcd
