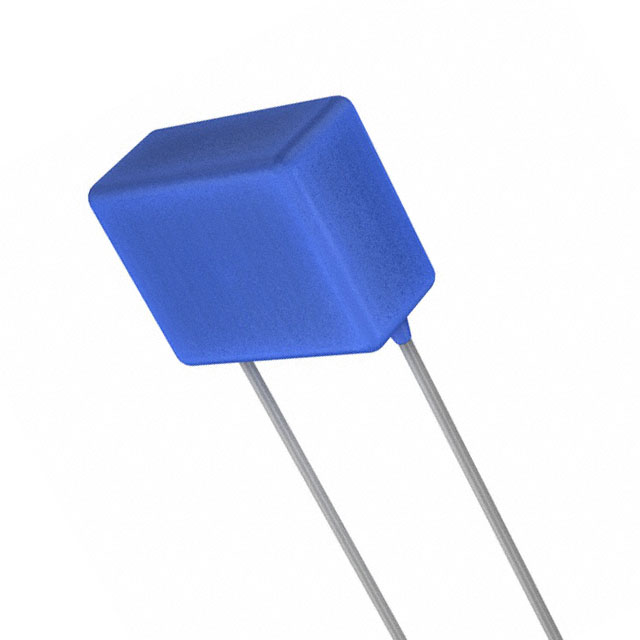

05HV14B104KN

Active

KEMET

CAP CER 0.1UF 500V X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.1UF 500V X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	05HV14B104KN

Applications	Downhole
Capacitance	100000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lead Spacing	0.5 in
Lead Spacing	12.7 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	15.75 mm
Size / Dimension [x]	0.62 in
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	500 V

CAP CER 0.1UF 500V X7R RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Temperature Coefficient	Capacitance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET 05HV14B104KN	7.62 mm	15.75 mm	0.62 in	0.3 "	Downhole	Radial	Through Hole	0.5 in	12.7 mm	500 V	10 %	X7R	100000 pF	High Temperature, High Voltage	-55 °C	200 °C	Straight	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.1 µF ±10% 500V Ceramic Capacitor X7R Radial
