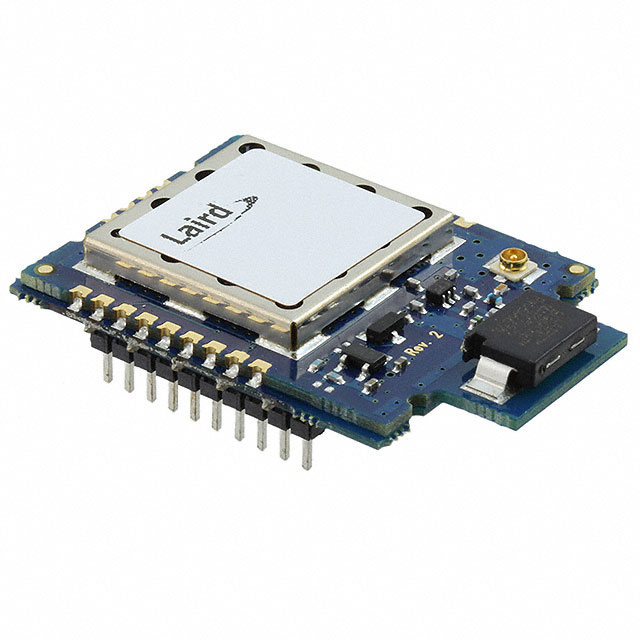

RM024-P125-M-30
ObsoleteEzurio LLC
RF TXRX MOD ISM>1GHZ CHIP TH
RM024-P125-M-30
ObsoleteEzurio LLC
RF TXRX MOD ISM>1GHZ CHIP TH
Description
General part information
RM024-P125-M-30
General ISM > 1GHz RAMP Transceiver Module 2.4GHz Integrated, Chip Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | RM024-P125-M-30 |
|---|---|
| Antenna Type | Chip, Integrated |
| Current - Receiving | 36 mA |
| Current - Transmitting (Max) | 136 mA |
| Current - Transmitting (Min) | 40 mA |
| Data Rate | 500 kbps |
| Frequency | 2.4 GHz |
| Modulation | MSK, FHSS |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 21 dBm |
| Protocol | RAMP |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -95 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.3 V |
