BAC515
ActivePasternack

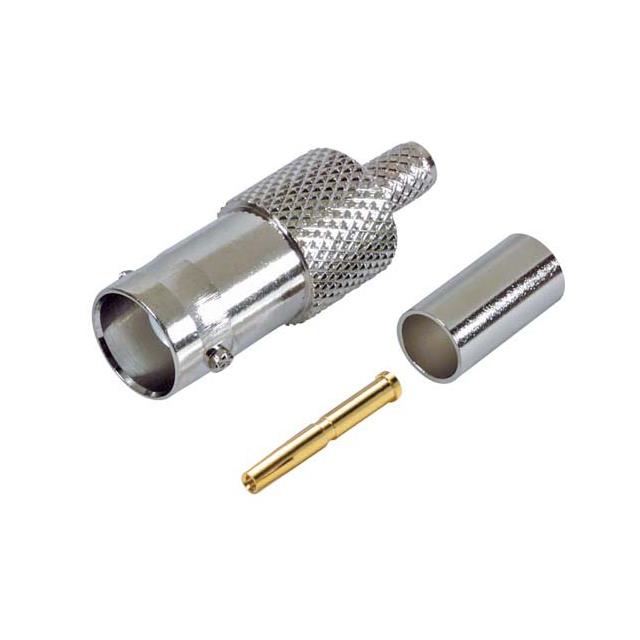

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, 50 OHM, RG58, BRASS
BAC515
ActivePasternack
RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, 50 OHM, RG58, BRASS
Description
General part information
BAC515
BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC515 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
