LCCA30534-FT10
ActivePasternack
SMA MRA TO BNC F USING LC085TB,
LCCA30534-FT10
ActivePasternack
SMA MRA TO BNC F USING LC085TB,
Description
General part information
LCCA30534-FT10

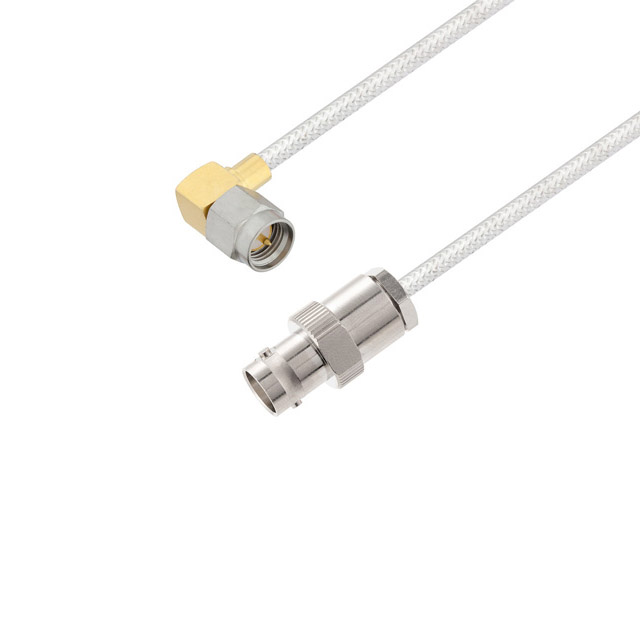

Cable Assembly Coaxial BNC to SMA LC085TB 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30534-FT10 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
