Connectors, Interconnects

87159-6

Unknown

TE Connectivity Raychem Cable Protection

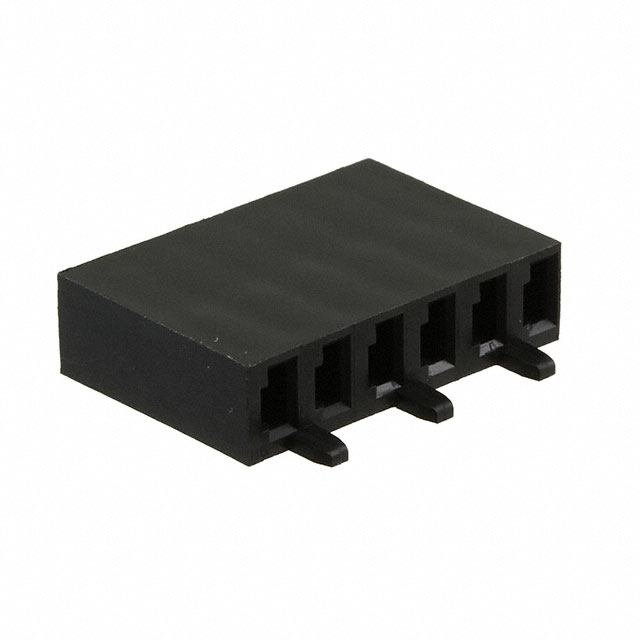

CONN RCPT HSG 6POS 3.96MM

Search across all available documentation for this part.

Connectors, Interconnects

Unknown

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Connector Type	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Color	Number of Rows	Mounting Type	Number of Positions
TE Connectivity Raychem Cable Protection 87159-4	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-87159-2	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	12
TE Connectivity Raychem Cable Protection 87159-6			Contacts Not Included		Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	6
TE Connectivity Raychem Cable Protection 87159-8	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	8
TE Connectivity Raychem Cable Protection 87159-3	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	2
TE Connectivity Raychem Cable Protection 87159-7	-65 ░C	105 ░C	Contacts Not Included	Thermoplastic	Receptacle	Female Socket	Crimp	0.156 in	3.96 mm	Black	1	Free Hanging (In-Line)	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 1.05

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.156" (3.96mm)

Technical documentation and resources

No documents available
