628-8W8-224-1NB

Active

EDAC Inc.

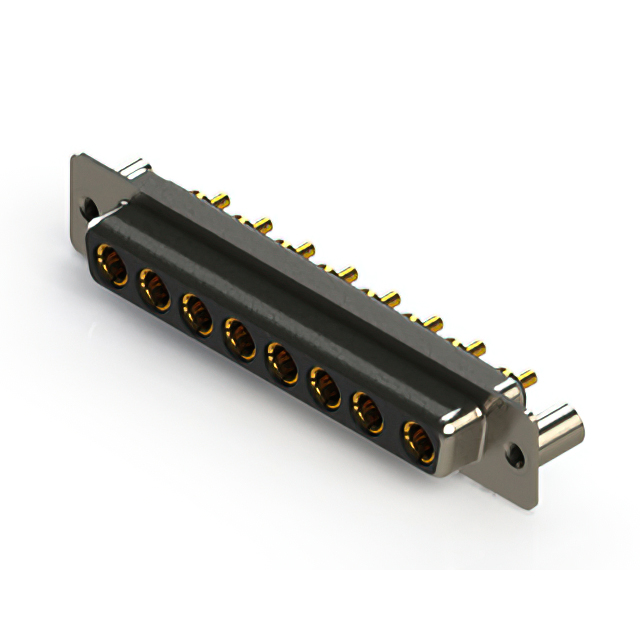

CONN D-SUB RCPT 8POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-8W8-224-1NB

Active

EDAC Inc.

CONN D-SUB RCPT 8POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-8W8-224-1NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

628-8W8 Series

...

Part	Contact Finish	Contact Material	Flange Feature	Connector Type	Color	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Material Flammability Rating	Dielectric Material	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Mounting Type	Voltage Rating	Number of Positions	Current Rating (Amps)	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-8W8-624-5N5	Gold	Copper Alloy	4-40 Board Side	Receptacle Female Sockets	Black	Coax Signal	Board Lock Shielded	0.76 Ám	30 Áin	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8
EDAC Inc. 628-8W8-224-1NB	Gold	Copper Alloy	Board Side (M3)	Receptacle Female Sockets	Black	Signal and Power	Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	10 A	Flash
EDAC Inc. 628-8W8-224-4N2	Gold	Copper Alloy	4-40 Board Side	Receptacle Female Sockets	Black	Signal and Power	Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	40 A	Flash
EDAC Inc. 628-8W8-224-2NE	Gold	Copper Alloy	M3	Receptacle Female Sockets	Black	Signal and Power	Board Lock Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	20 A	Flash
EDAC Inc. 628-8W8-624-3N4	Gold	Copper Alloy	4-40	Receptacle Female Sockets	Black	Signal and Power	Shielded	0.76 Ám	30 Áin	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	30 A
EDAC Inc. 628-8W8-224-2TC	Gold	Copper Alloy		Receptacle Female Sockets	Black	Signal and Power	Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic		8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	20 A	Flash	M3	M3
EDAC Inc. 628-8W8-224-2N4	Gold	Copper Alloy	4-40	Receptacle Female Sockets	Black	Signal and Power	Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	20 A	Flash
EDAC Inc. 628-8W8-624-3NC	Gold	Copper Alloy		Receptacle Female Sockets	Black	Signal and Power	Shielded	0.76 Ám	30 Áin	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Nickel Plated Steel	8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	30 A		M3	M3
EDAC Inc. 628-8W8-224-4T1	Gold	Copper Alloy	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Black	Signal and Power	Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic		8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	40 A	Flash
EDAC Inc. 628-8W8-224-4T5	Gold	Copper Alloy	4-40 Board Side	Receptacle Female Sockets	Black	Signal and Power	Board Lock Shielded			Combo D-Sub	UL94 V-0	Polyester Thermoplastic		8W8	4	-55 °C	125 °C	Solder	1	Through Hole	125 VDC	8	40 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 11.97

Description

General part information

628-8W8 Series

8 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
