AC164130-2
ActiveMicrochip Technology

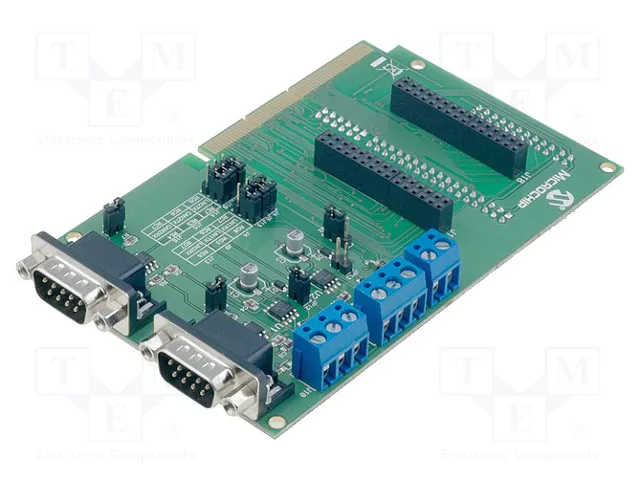

DAUGHTER BOARD, CAN/LIN PICTAIL (PLUS), FOR EXPLORER 16 DEVELOPMENT BOARD & PIC18 EXPLORER BOARD
AC164130-2
ActiveMicrochip Technology
DAUGHTER BOARD, CAN/LIN PICTAIL (PLUS), FOR EXPLORER 16 DEVELOPMENT BOARD & PIC18 EXPLORER BOARD
Description
General part information
AC164130-2
Connector to Explorer 16 Development Board and PIC18 Explorer Board
Two CAN communication channels interfacing to ECAN module
Two LIN communication channels interfacing to UART module
Technical Specifications
Parameters and characteristics for this part
| Specification | AC164130-2 |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | ECAN LINbus, CANbus |
| Primary Attributes | 2 CAN, 2 LIN Transceivers, 4 Socketed IC's, 2 CAN and 2 LIN Transceivers |
| Secondary Attributes | Requires Explorer 16 Board |
| Type | Interface |
| Utilized IC / Part | MCP2021, MCP2551 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
