SDVL4532SD121PTHS801
ActiveShenzhen Sunlord Electronics Co., Ltd.
VARISTOR 150V 500A 1812
SDVL4532SD121PTHS801
ActiveShenzhen Sunlord Electronics Co., Ltd.
VARISTOR 150V 500A 1812
Description
General part information
SDVL4532SD121PTHS801

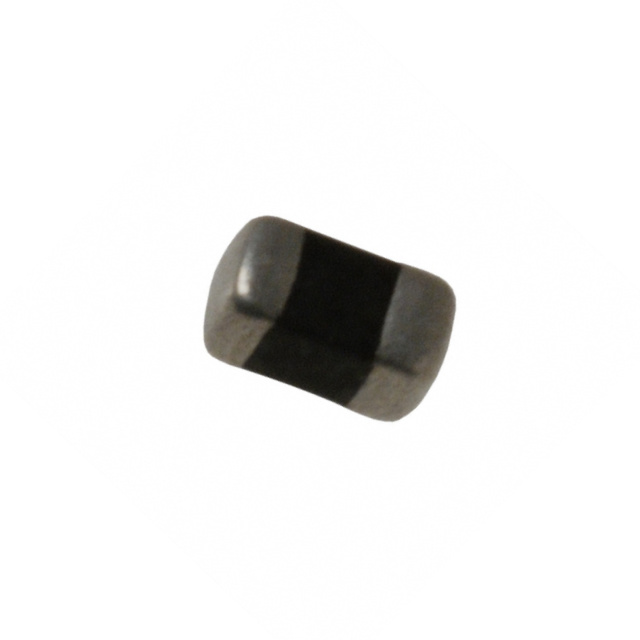

150 V 800 A Varistor 1 Circuit Surface Mount, MLCV 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SDVL4532SD121PTHS801 |
|---|---|
| Current - Surge | 800 A |
| Energy | 0.5 J |
| Maximum AC Volts | 95 V |
| Maximum DC Voltage | 125 V |
| Mounting Type | MLCV, Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Varistor Voltage (Max) | 165 V |
| Varistor Voltage (Min) | 135 V |
| Varistor Voltage (Typ) | 150 V |
