MDR-134-1
ActiveTE Connectivity Aerospace, Defense and Marine

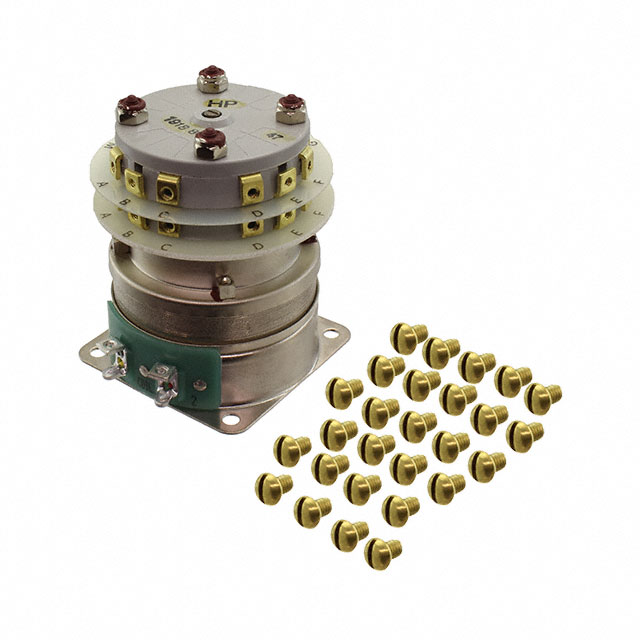

RELAY GEN PURPOSE 8PDT 10A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDR-134-1
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE 8PDT 10A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MDR-134-1 | 1393139 Series |
|---|---|---|
| Coil Current | 215 mA | 215 - 230 mA |
| Coil Resistance | 534.8 Ohms | 62 - 534.8 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 115 VAC | 115 VAC |
| Contact Form | 8PDT (8 Form C) | 4PDT (4 Form C), 8PDT (8 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A | 10 A |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operate Time | 16 ms | 12 - 16 ms |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | - | 18 ms |
| Termination Style | Screw Terminal | Screw Terminal |
1393139 Series
RELAY GEN PURPOSE 4PDT 10A 115V
| Part | Mounting Type | Contact Form | Release Time | Relay Type | Coil Current | Coil Resistance | Operate Time | Contact Rating (Current) | Coil Voltage | Coil Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine MDR-131-1 | Chassis Mount | 4PDT (4 Form C) | 18 ms | General Purpose | 215 mA | 66 Ohms | 12 ms | 10 A | 115 VAC | Non Latching | Screw Terminal | 65 °C | 0 °C | |
TE Connectivity Aerospace, Defense and Marine MDR-163-1 | Chassis Mount | 18 ms | General Purpose | 230 mA | 62 Ohms | 12 ms | 10 A | 115 VAC | Non Latching | Screw Terminal | 65 °C | 0 °C | ||
TE Connectivity Aerospace, Defense and Marine MDR-134-1 | Chassis Mount | 8PDT (8 Form C) | General Purpose | 215 mA | 534.8 Ohms | 16 ms | 10 A | 115 VAC | Non Latching | Screw Terminal | 65 °C | 0 °C | Silver Cadmium Oxide (AgCdO) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2715.36 | |
Description
General part information
1393139 Series
General Purpose Relay 8PDT (8 Form C) 115VAC Coil Chassis Mount
Documents
Technical documentation and resources
