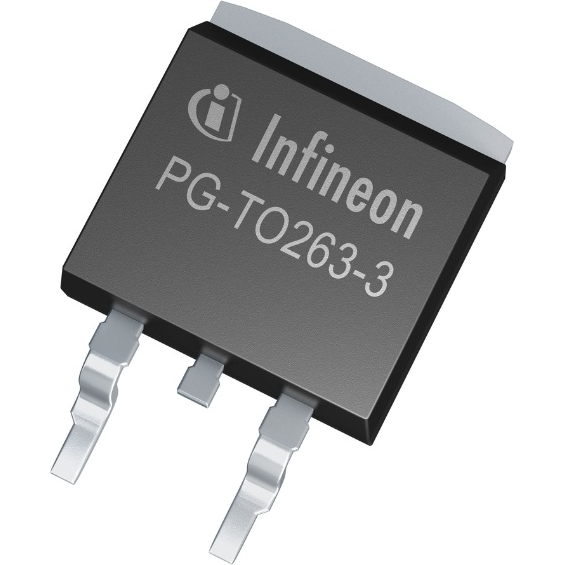

IPB120P04P4L03ATMA1
IPB120P04P4L-03 IS AN AUTOMOTIVE MOSFET OFFERING -40V, P-CH, 3.1 MΩ MAX, D2PAK, OPTIMOS™-P2, AEC QUALIFIED, MSL1, 175°C OPERATING TEMPERATURE, ROHS COMPLIANT.
Technical Specifications
Parameters and characteristics for this part
| Specification | IPB120P04P4L03ATMA1 |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 120 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On) | 4.5 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | P-Channel |
| Gate Charge (Max) | 234 nC, 234 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) | 15000 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB |
| Package Name | PG-TO263-3 |
| Power Dissipation (Max) | 136 W |
| Qualification | AEC-Q101 |
| Rds On (Max) | 3.1 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 16 V |
| Vgs(th) (Max) | 2.2 V |
