USBAFT
ActiveTERMINAL BLOCK INTERFACE, TERMINAL BLOCK, USB A RECEPTACLE
USBAFT
ActiveTERMINAL BLOCK INTERFACE, TERMINAL BLOCK, USB A RECEPTACLE
Description
General part information
USBAFT

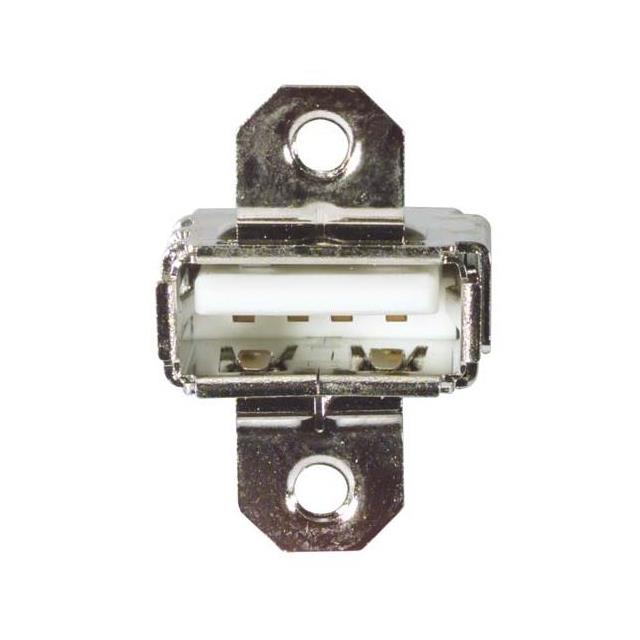

The USBAFT is an USB Type-A Female Field Termination Connector, provides an easy and convenient way to perform field termination for USB applications. Separate connection points are provided for all four positions of the connector plus the ground. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof.
Technical Specifications
Parameters and characteristics for this part
| Specification | USBAFT |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Gender | Receptacle |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Shielding | Shielded |
| Termination | Terminal Block |
