Description
General part information
DMM-B-11A

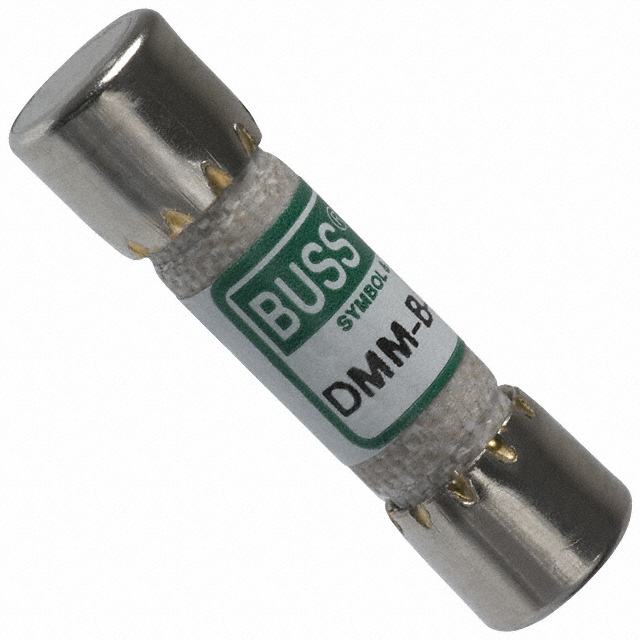

The DMM-B-11A from Bussmann is a fast acting ferrule fuse. This fuse is designed for multi meters only. It has melamine tube construction with nickel plated brass end caps.
Technical Specifications
Parameters and characteristics for this part
| Specification | DMM-B-11A |
|---|---|
| Applications | Multi-Meters |
| Approval Agency | UL |
| Breaking Capacity | 20 kA |
| Current Rating | 11 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 1 kV |
