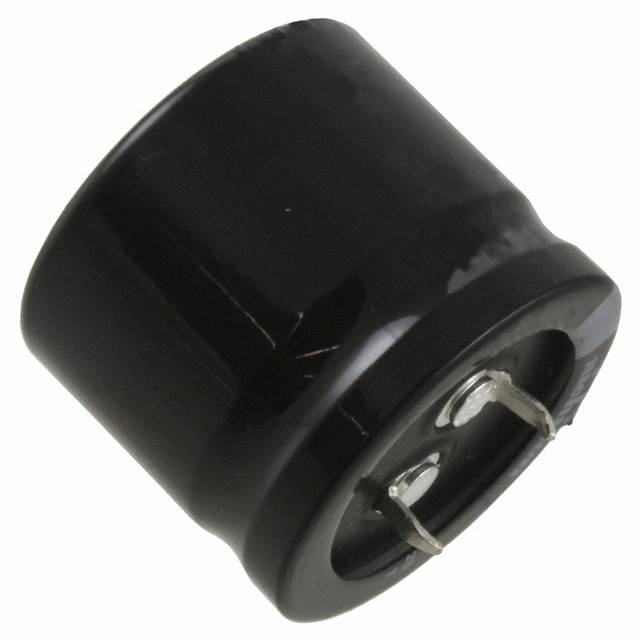

Specification	LGN2H181MELB35

Applications	General Purpose
Capacitance	180 µF
Height - Seated (Max)	1.457 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.287 A, 900 mA
Size / Dimension Diameter	1.181 in
Tolerance	20 %
Voltage - Rated	500 V

LGN Series

Part	Polarization	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Size / Dimension Diameter	Mounting Type	Tolerance	Ripple Current	Lead Spacing	Applications	Height - Seated (Max)	Package / Case	Lifetime
Nichicon LGN2H820MELZ35	Polar	500 V	105 °C	-25 °C	82 µF	0.866 in	Through Hole	20 %	590 mA 843.7 mA	0.394 in	General Purpose	1.457 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2Z152MELA50	Polar	180 Vp-p	105 °C	-40 °C	1500 µF	0.984 in	Through Hole	20 %	2.5 A 3.75 A	0.394 in	General Purpose	2.047 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGNW6181MELY45	Polar	420 V	105 °C	-25 °C	180 µF	0.787 in	Through Hole	20 %	1.3013 A 910 mA	0.394 in	General Purpose	1.85 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2C471MELY30	Polar	160 V	105 °C	-40 °C	470 µF	0.787 in	Through Hole	20 %	1.4 A 2.1 A	0.394 in	General Purpose	1.26 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2D391MELY30	Polar	200 VDC	105 °C	-40 °C	390 µF	0.787 in	Through Hole	20 %	1.34 A 2.01 A	0.394 in	General Purpose	1.26 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2V821MELC45	Polar	350 V	105 °C	-25 °C	820 µF	1.378 in	Through Hole	20 %	1.9 A 2.717 A	0.394 in	General Purpose	1.85 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2X151MELC40	Polar	600 V	105 °C	-25 °C	150 µF	1.378 in	Through Hole	20 %	830 mA	0.394 in	General Purpose	1.654 in	Can - Snap-In Radial	2000 Hrs
Nichicon LGN2Z222MELB50	Polar	180 Vp-p	105 °C	-40 °C	2200 ĄF	1.181 in	Through Hole	20 %	2.9 A 4.35 A	0.394 in	General Purpose	2.047 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2G221MELZ45	Polar	400 V	105 °C	-25 °C	220 µF	0.866 in	Through Hole	20 %	1.1 A 1.573 A	0.394 in	General Purpose	1.85 in	Can - Snap-In Radial	3000 Hrs
Nichicon LGN2E471MELZ40	Polar	250 V	105 °C	-40 °C	470 µF	0.866 in	Through Hole	20 %	1.4 A 2.1 A	0.394 in	General Purpose	1.654 in	Can - Snap-In Radial	3000 Hrs
