506WLSM0R70KT619T
ActiveKYOCERA AVX
FIXED IND 700NH 619MA 320MOHM SM
506WLSM0R70KT619T
ActiveKYOCERA AVX
FIXED IND 700NH 619MA 320MOHM SM
Description
General part information
506WLSM0R70KT619T

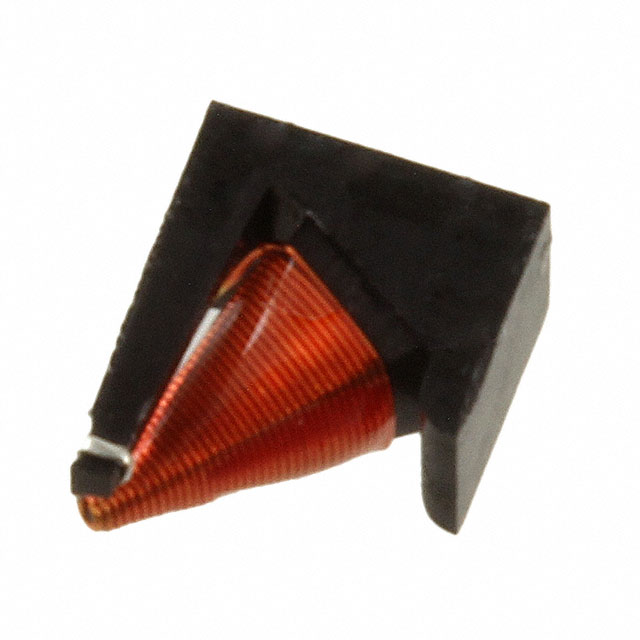

700 nH Unshielded Drum Core, Wirewound Inductor 619 mA 320mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 506WLSM0R70KT619T |
|---|---|
| Current Rating | 619 mA |
| DC Resistance (DCR) | 320 mOhm |
| Height - Seated (Max) | 0.105 in |
| Inductance | 700 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.127 in |
| Size / Dimension Width | 0.08 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
