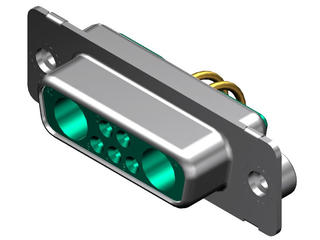

1731070681 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, #4-40 Clinch Nut, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator

1731070681

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, #4-40 CLINCH NUT, 7 CIRCUITS MAX, 5 SIGNAL CONTACTS LOADED, GREEN INSULATOR

Find alt
1731070681 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, #4-40 Clinch Nut, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator

1731070681

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, #4-40 CLINCH NUT, 7 CIRCUITS MAX, 5 SIGNAL CONTACTS LOADED, GREEN INSULATOR

Find alt

Description

General part information

173107 Series

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH

Technical Specifications

Parameters and characteristics for this part

Specification1731070681
Backset Spacing0.37 in
Connector LayoutDA, A
Connector StyleCombo, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact TypeCoax or Power, Signal
Current Rating5 A
FinishTin Plated
Flange FeatureBoard Side (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions (Special)2
Number of Positions (Standard)5
Number of Positions (Total)7
Number of Rows2
Part Code7W2
Position TypesPower, Coax
Primary MaterialMetal
Shell MaterialSteel
Shell Size2
TerminationSolder
