2-604771-9
ActiveTE Connectivity AMP Connectors
CBL TIE LOCKING NAT 18LBS 4.06"
2-604771-9
ActiveTE Connectivity AMP Connectors
CBL TIE LOCKING NAT 18LBS 4.06"
Description
General part information
2-604771-9

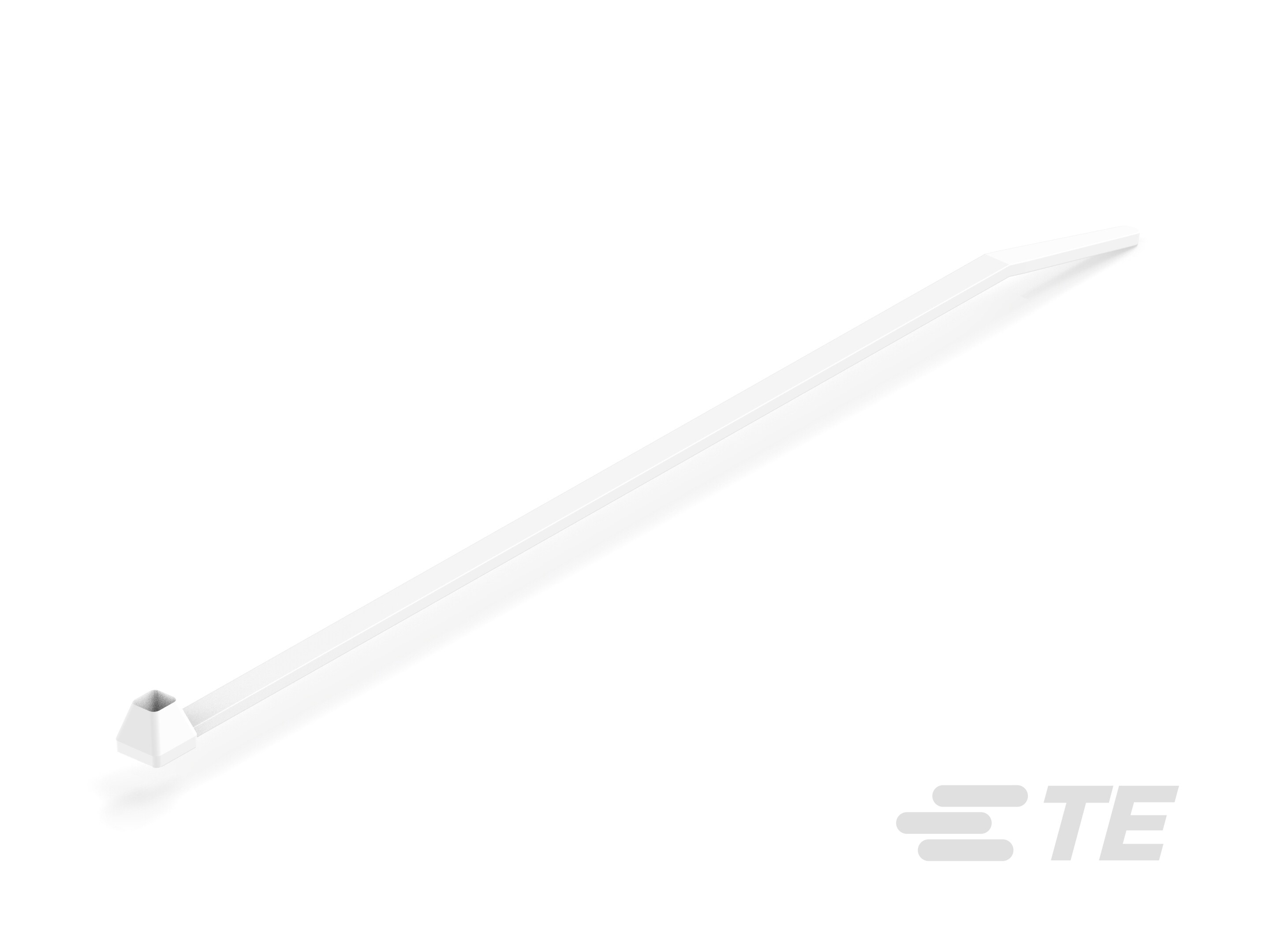

Standard Cable Tie, Bag, 18 lbf Tensile Strength, 80.6 Newton Tensile Strength, 103 mm [4.07 in] Length, 2.44 mm [.096 in] Width, Natural, Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-604771-9 |
|---|---|
| Bundle Diameter | 0.75 in |
| Color | Natural |
| Length - Actual | 0.338 ft |
| Length - Approximate | 4 in |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 18 lbs |
| Width | 0.096 in |
| Wire/Cable Tie Type | Locking, Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
