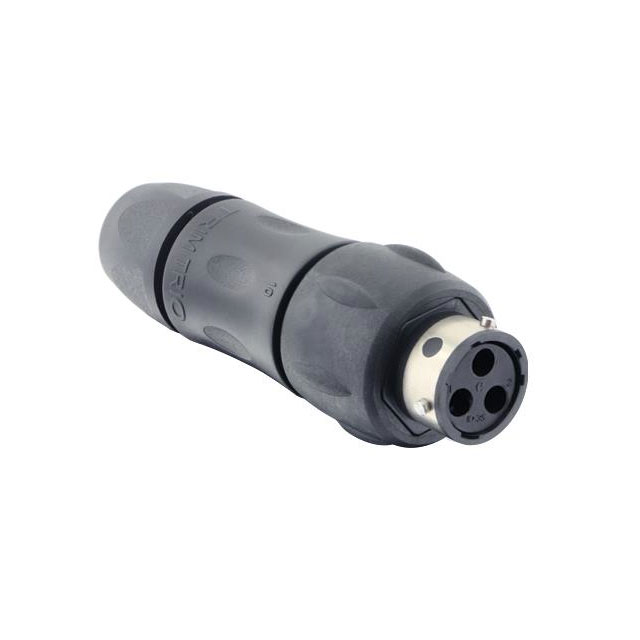

Specification	UTGX1JC103S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell, UV Resistant
Housing Color	Black
Includes	Connector, O-Ring, Backshell
Includes Total Count	3 pcs
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	PE
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Female Sockets

UTGX1 Series

Part	Applications	Contact Finish - Mating	Number of Positions	Position Types	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Insert Material	Backshell Material, Plating	Orientation	Primary Material	Voltage Rating	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Color	Termination	Shell Material	Features	Material Flammability Rating	Fastening Type	Contact Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Size	Contact Type	Type	Contact Shape	Includes Total Count	Includes	Housing Color	Shell Size - Insert	Note
Amphenol Aerospace Operations UTGX1JC147PSCR	Automation Industrial Instrumentation Testing Equipment	Gold	7	PE	Free Hanging (In-Line)	7 mm	14 mm	10 A	0.276 in	0.551 in	Nylon PA Polyamide	Nylon Polyamide (PA)	N (Normal)	Plastic	500 V	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	Black	Screw	Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock	Brass	Male Pins Receptacle	-40 °C	105 °C
Amphenol Aerospace Operations UTGX1JC124PSCR	Automation Industrial Instrumentation Testing Equipment	Gold	4	PE	Free Hanging (In-Line)	4 mm	12 mm	16 A	0.197 in	0.472 in	Nylon PA Polyamide	Nylon Polyamide (PA)	N (Normal)	Plastic	500 V	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	Black	Screw	Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock	Brass	Male Pins Receptacle	-40 °C	105 °C
Amphenol Aerospace Operations UTGX1JC103W3P			6		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	16 20	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black	10-3W3	Contacts Not Included
Amphenol Aerospace Operations UTGX1JC103P			3	PE	Free Hanging (In-Line)	3 mm	10 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	16 S	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black		Contacts Not Included
Amphenol Aerospace Operations UTGX1JC106P			6		Free Hanging (In-Line)	6 mm	10 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	20	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black		Contacts Not Included
Amphenol Aerospace Operations UTGX1JC103W3S			6		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	16 20	Crimp	For Female Sockets	Circular	3 pcs	Backshell Connector O-Ring	Black	10-3W3	Contacts Not Included
Amphenol Aerospace Operations UTGX1JC128P			8		Free Hanging (In-Line)	8 mm	12 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	16 S	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black		Contacts Not Included
Amphenol Aerospace Operations UTGX1JC1210S			10		Free Hanging (In-Line)	10 mm	12 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	20	Crimp	For Female Sockets	Circular	3 pcs	Backshell Connector O-Ring	Black		Contacts Not Included
Amphenol Aerospace Operations UTGX1JC148P			8	PE Power	Free Hanging (In-Line)	8 mm	14 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	12 16	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black		Contacts Not Included
Amphenol Aerospace Operations UTGX1JC102W2P			4		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	12 20	Crimp	For Male Pins	Circular	3 pcs	Backshell Connector O-Ring	Black	10-2W2	Contacts Not Included
