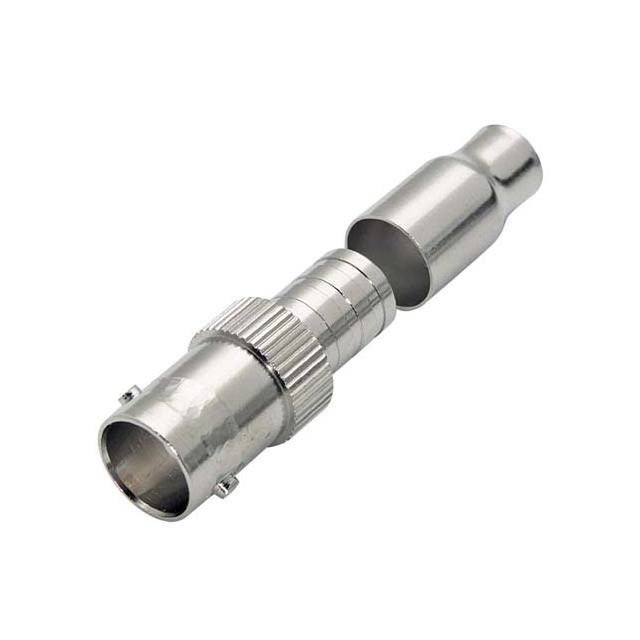

BAC012
ObsoletePasternack
CONN 75 OHM BNC F RG59 CRIMP
BAC012
ObsoletePasternack
CONN 75 OHM BNC F RG59 CRIMP
Description
General part information
BAC012
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC012 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
