PE3275-24
ActivePasternack

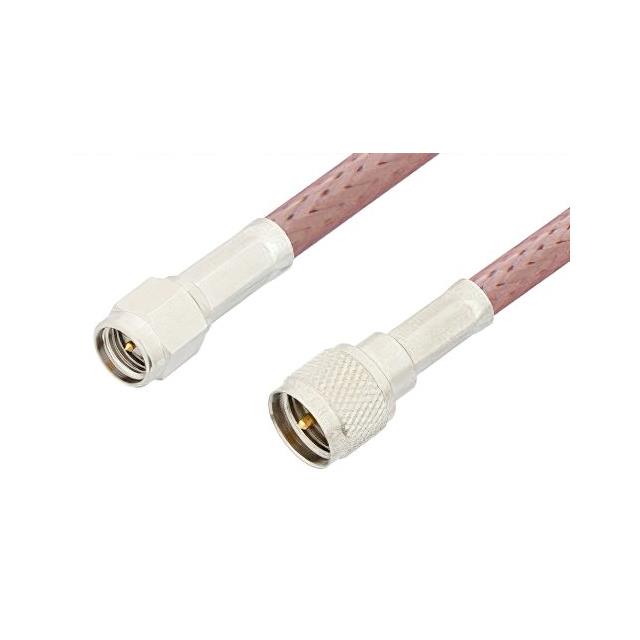

COAX CBL SMA TO UHF MINI 24"
PE3275-24
ActivePasternack
COAX CBL SMA TO UHF MINI 24"
Description
General part information
PE3275-24
COAX CBL SMA TO UHF MINI 24"
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3275-24 |
|---|---|
| 1st Connector | Mini Plug, UHF |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | UHF Mini, SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
