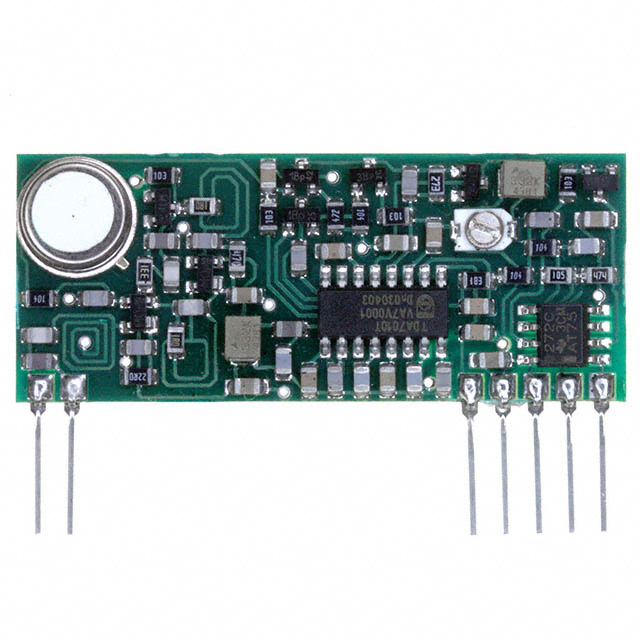

RXM-418-RM
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER ASK/OOK 418MHZ 7SIP
RXM-418-RM
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER ASK/OOK 418MHZ 7SIP
Description
General part information
RXM-418-RM
RM RF Receiver ASK, OOK 418MHz -100dBm 10kbps Through Hole 7-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | RXM-418-RM |
|---|---|
| Antenna Connector | Through Hole |
| Applications | RKE, ISM, Garage Door Openers |
| Current - Receiving | 14 mA |
| Data Interface | Through Hole, PCB |
| Data Rate (Max) | 10 kBaud |
| Frequency | 418 MHz |
| Modulation or Protocol | ASK, OOK |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 7-SIP Module |
| Package Name | 7-SIP |
| Sensitivity | -100 dBm |
| Voltage - Supply (Maximum) | 9 V |
| Voltage - Supply (Minimum) | 3.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
