01036-701

Active

Sensata-BEI Sensors

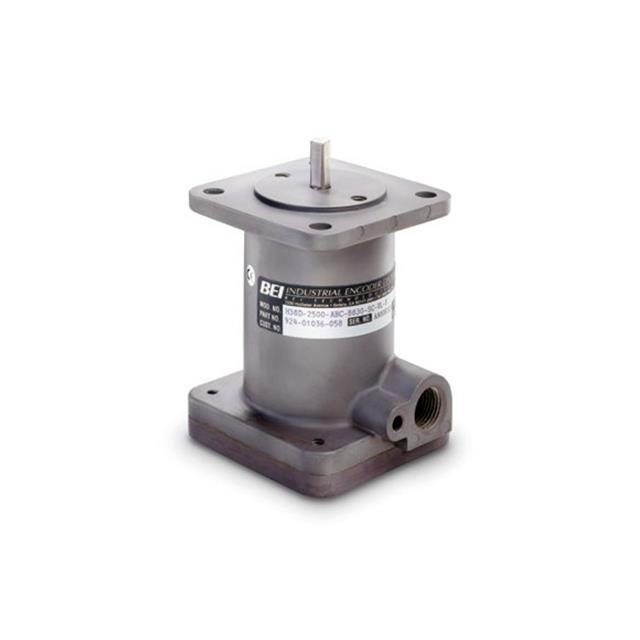

ROTARY ENCODER ABSOLUTE 8192PPR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01036-701	01036 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Absolute	Optical, Absolute
Mounting Type	Chassis Mount	Chassis Mount
Orientation	User Selectable	User Selectable
Output Type	Gray Code (Absolute)	Quadrature with Index (Incremental), Gray Code (Absolute), Quadrature (Analog)
Pulses per Revolution	8192	8 - 8192
Pulses per Revolution	-	Programmable
Rotational Life (Cycles Min)	200M	200M
Termination Style	Cable	Terminal Block, Straight - Push In, Cable
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

01036 Series

ROTARY ENCODER OPTICAL 250PPR

Part	Encoder Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Orientation	Rotational Life (Cycles Min)	Mounting Type	Termination Style	Actuator Type	Pulses per Revolution	Pulses per Revolution
Sensata-BEI Sensors 01036-288	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	250
Sensata-BEI Sensors 01036-527	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	500
Sensata-BEI Sensors 01036-590	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	2048
Sensata-BEI Sensors 01036-439	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	250
Sensata-BEI Sensors 01036-338	Optical	Gray Code (Absolute)	5 V	28 V	User Selectable		Chassis Mount	Terminal Block, Straight - Push In	Shaft	8
Sensata-BEI Sensors 01036-685	Absolute	Gray Code (Absolute)			User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	4096
Sensata-BEI Sensors 01036-713	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	3600 per revolution
Sensata-BEI Sensors 01036-519	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	1800
Sensata-BEI Sensors 01036-265	Optical	Quadrature with Index (Incremental)	5 V	28 V	User Selectable	200M	Chassis Mount	Terminal Block, Straight - Push In	Shaft	50
Sensata-BEI Sensors 01036-656	Absolute	Quadrature (Analog)	5 V	28 V	User Selectable		Chassis Mount	Terminal Block, Straight - Push In	Shaft		Programmable
