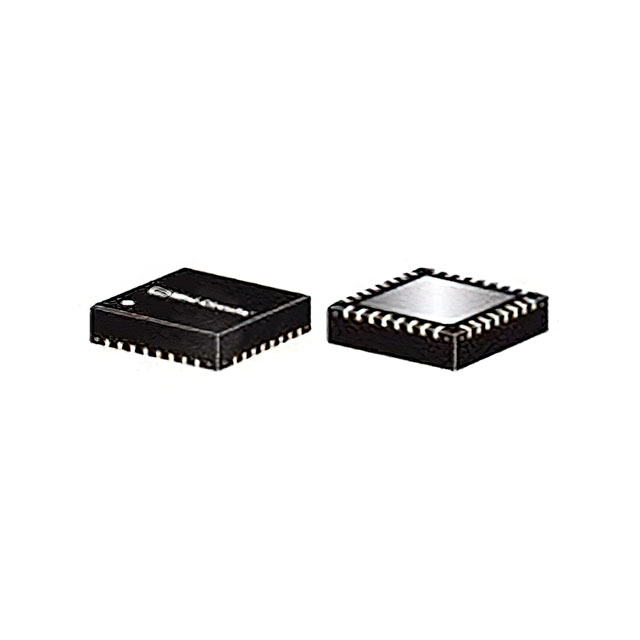

XHF-721M+
ActiveMini-Circuits
RF FILTER HI PASS 2.85GHZ 24QFN
XHF-721M+
ActiveMini-Circuits
RF FILTER HI PASS 2.85GHZ 24QFN
Description
General part information
XHF-721M+
2.85GHz Center Frequency High Pass RF Filter (Radio Frequency) 4.3GHz Bandwidth 2.3dB 24-VFQFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | XHF-721M+ |
|---|---|
| Bandwidth | 4.3 GHz |
| Filter Type | High Pass |
| Frequency (Center) | 2.85 GHz |
| Height (Max) | 0.039 in |
| Insertion Loss | 2.3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
