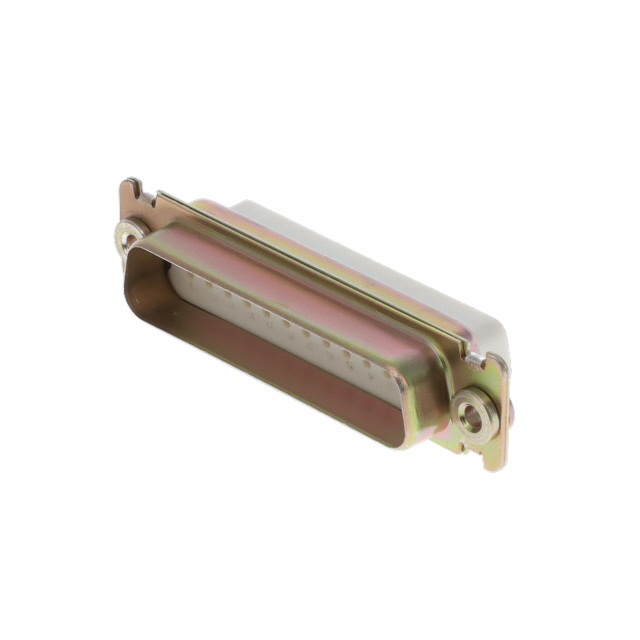

Specification	M24308/4-326F

Color	Natural
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Glass Filled, Polyester
Finish	Yellow Cadmium Plated
Flange Feature	Shell (Unthreaded), Housing
Mating Cycles	500 cycles
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3

M24308/4 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Form	Dielectric Material	Color	Termination	Contact Type	Material Flammability Rating	Number of Positions	Mounting Type	Shell Size	Connector Layout	Connector Type	Contact Finish	Connector Style	Number of Rows	Flange Feature	Current Rating	Finish	Shell Material	Primary Material	Note	Mating Cycles	Qualification	Shell Material, Finish	Grade	Connector Layout (Positions)
McGill Microwave Systems M24308/4-13F	125 °C	-55 °C	Copper Alloy	28 AWG	22 AWG	Machined	Glass Filled Polyester	Natural	Crimp	Signal	UL94 V-0	44	Panel Mount	3	B DB High Density	Male Pins Plug	Gold	D-Sub High Density	3	Housing Shell (Unthreaded)	5 A	Yellow Cadmium Plated	Steel
McGill Microwave Systems M24308/4-5F									Crimp	Signal		50	Panel Mount	5	D DD	Male Pins Plug	Gold	D-Sub	3	Housing Shell (Unthreaded)		Yellow Chromate Plated Cadmium	Steel	Metal
McGill Microwave Systems M24308/4-12F	125 °C	-55 °C	Copper Alloy	28 AWG	22 AWG	Machined	Glass Filled Polyester	Natural	Crimp	Signal	UL94 V-0	26	Panel Mount	2	A DA High Density	Male Pins Plug	Gold	D-Sub High Density	3	Housing Shell (Unthreaded)	5 A	Yellow Cadmium Plated	Steel
McGill Microwave Systems M24308/4-5F	125 °C	-55 °C	Copper Alloy	26 AWG	19.5 AWG	Machined	Glass Filled Polyester	Natural	Crimp	Signal	UL94 V-0	50	Panel Mount	5	D DD	Male Pins Plug	Gold	D-Sub	3	Housing Shell (Unthreaded)	7.5 A	Yellow Cadmium Plated	Steel	Metal
McGill Microwave Systems M24308/4-259Z
McGill Microwave Systems M24308/4-260Z
McGill Microwave Systems M24308/4-259Z	125 °C	-55 °C					Diallyl Phthalate (DAP)	Black		Signal		9	Free Hanging (In-Line)	1	DE E	Plug for Male Contacts		D-Sub	2	Housing Shell (Unthreaded)					Contacts Not Included	500 cycles	MIL-DTL-24308	Steel Yellow Chromate Plated Zinc	Military
McGill Microwave Systems M24308/4-4Z									Crimp	Signal	UL94 V-0	37 pos	Panel Mount	4	C DC	Male Pins Plug	Gold	D-Sub	2	Housing Shell (Unthreaded)	7.5 A							Steel Yellow Chromate Plated Zinc
McGill Microwave Systems M24308/4-1F									Crimp	Signal		9	Panel Mount	1	DE E	Male Pins Plug	Gold	D-Sub	2	Housing Shell (Unthreaded)	7.5 A	Yellow Cadmium Plated	Steel	Metal
McGill Microwave Systems M24308/4-16F									Crimp	Signal	UL94 V-0	104	Panel Mount	6		Male Pins Plug	Gold	D-Sub High Density	5	Housing Shell (Unthreaded)	5 A	Yellow Cadmium Plated	Steel							6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M24308/4-326F | Datasheet
