5430153
ActivePhoenix Contact
TERM BLOCK 2POS 3.81MM PCB
5430153
ActivePhoenix Contact
TERM BLOCK 2POS 3.81MM PCB
Description
General part information
5430153

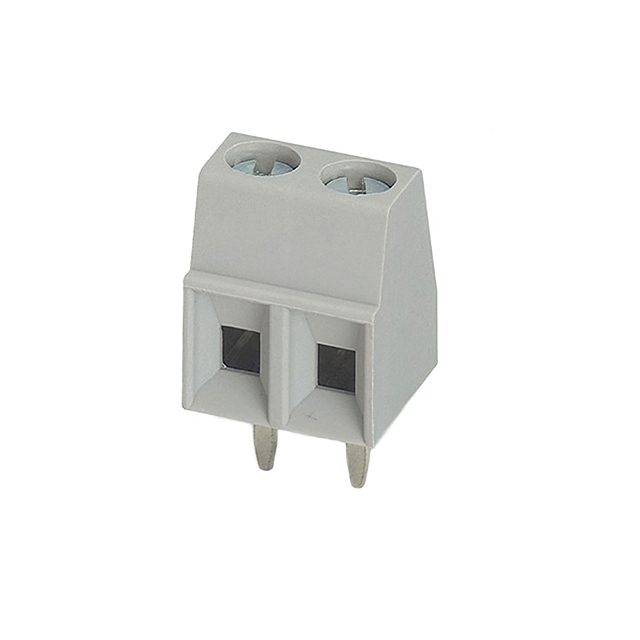

2 Position Wire to Board Terminal Block 0.150" (3.81mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 5430153 |
|---|---|
| Current | 10 A |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.15 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
