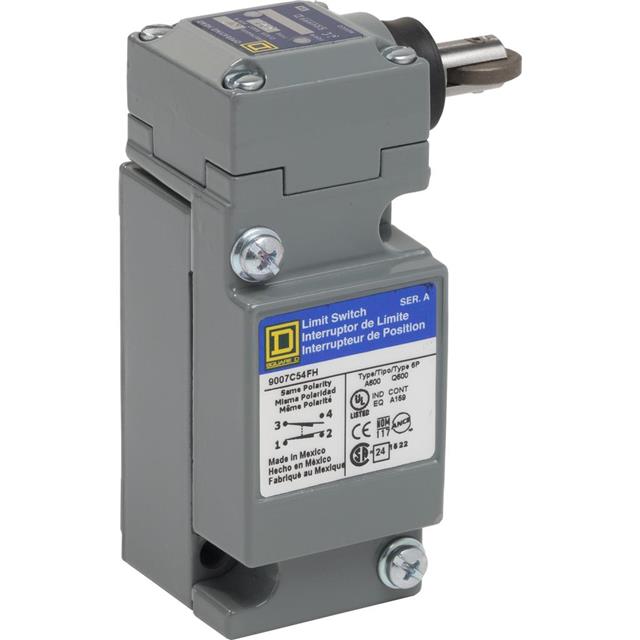

9007C54FH
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROLLER PLUNGER, SPDT-DB, 10 A, 600 V, 9007 SERIES
9007C54FH
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROLLER PLUNGER, SPDT-DB, 10 A, 600 V, 9007 SERIES
Description
General part information
9007C54FH
Switch DPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007C54FH |
|---|---|
| Actuator Type | Side Roller Plunger |
| Circuit | DPDT (DB/DM) |
| Current Rating | 10 A |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -18 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 600 VAC |
