RXE020-2
ObsoleteLITTELFUSE
PTC RESET FUSE 72V 200MA RADIAL
RXE020-2
ObsoleteLITTELFUSE
PTC RESET FUSE 72V 200MA RADIAL
Description
General part information
RXE020-2

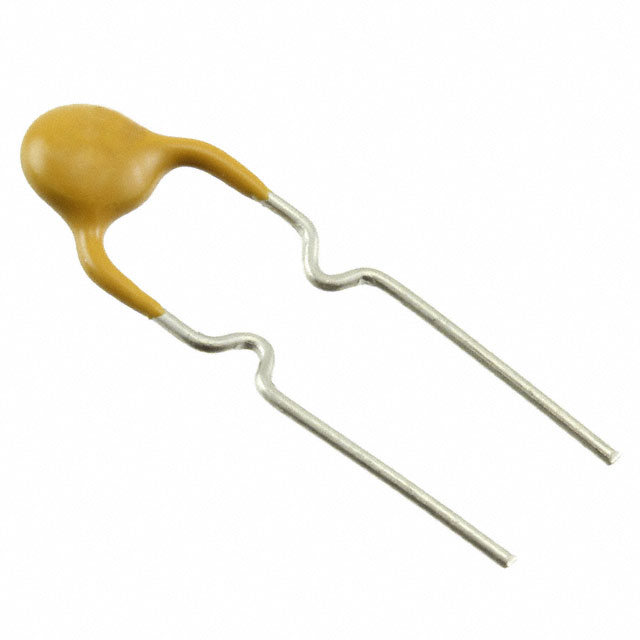

Polymeric PTC Resettable Fuse 72V 200 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | RXE020-2 |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Max | 40 A |
| Current - Trip (It) | 400 mA |
| Height - Seated (Max) | 0.461 in |
| Lead Spacing | 0.199 in |
| Mounting Type | Through Hole |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 1.83 Ohms |
| Resistance - Post Trip (R1) (Max) | 4.4 Ohms |
| Size / Dimension Diameter | 0.291 in |
| Size / Dimension Thickness | 0.118 in |
| Time to Trip | 2.2 s |
| Type | Polymeric |
| Voltage - Max | 72 V |
