PE8DP1002

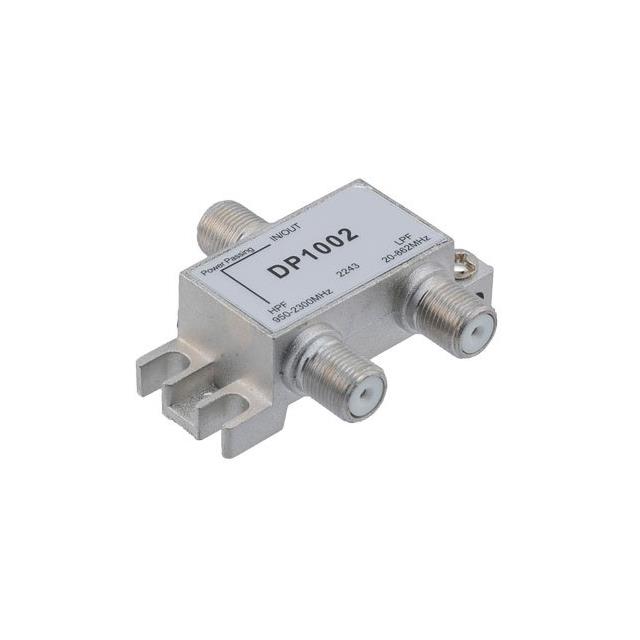

RF Diplexer 20MHz ~ 862MHz / 950MHz ~ 2.3GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE8DP1002 |
|---|---|
| Frequency Bands (High) Maximum | 2.3 GHz |
| Frequency Bands (High) Minimum | 950 MHz |
| Frequency Bands (Low) Maximum | 862 MHz |
| Frequency Bands (Low) Minimum | 20 MHz |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Return Loss (High Band) | 10 dB |
| Return Loss (Low Band) | 10 dB |
| Type | Diplexer |
