HCSREC-S-20A-WH
ActiveThomas Research Products

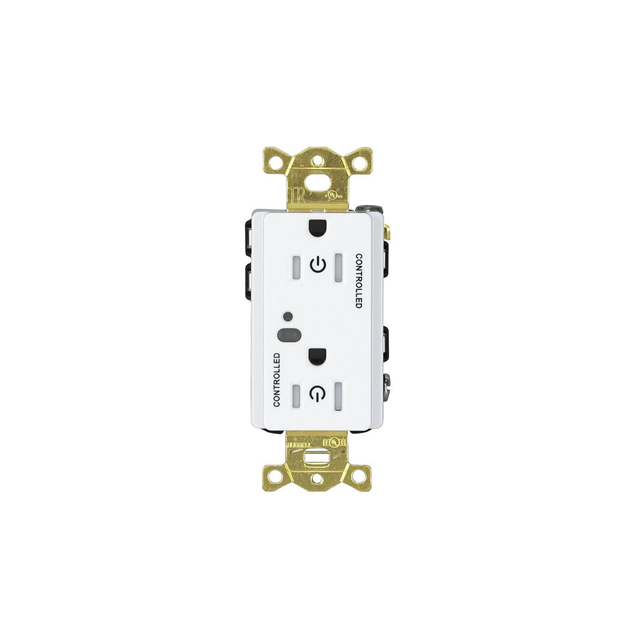

SPLIT CONTROLLED RECEPTACLE, 20A
HCSREC-S-20A-WH
ActiveThomas Research Products
SPLIT CONTROLLED RECEPTACLE, 20A
Description
General part information
HCSREC-S-20A-WH
Power Connector Receptacle, Female Sockets NEMA 5-15R Outlet Box
Technical Specifications
Parameters and characteristics for this part
| Specification | HCSREC-S-20A-WH |
|---|---|
| Approval Agency | UL, CSA |
| Connector Style | NEMA 5-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 20 A |
| Features | LED Indicator |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Outlet Box |
| Number of Connections | 2 |
| Number of Positions (per connection) | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
