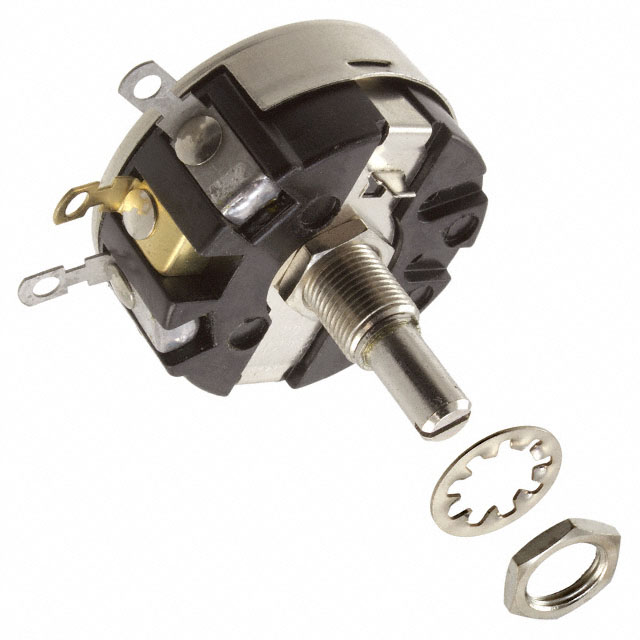

RA30NASD502A
ObsoleteHoneywell Sensing and Productivity Solutions
POT 5K OHM 4W WIREWOUND LINEAR
RA30NASD502A
ObsoleteHoneywell Sensing and Productivity Solutions
POT 5K OHM 4W WIREWOUND LINEAR
Description
General part information
RA30NASD502A
5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Wirewound 4W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | RA30NASD502A |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 4 W |
| Resistance | 5 kOhm |
| Resistive Material | Wirewound |
| Rotation | 300 ° |
| Size - Body Diameter | 1.69 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
