Description
General part information
RG223-SFRP-FMEF(QTY:2m)

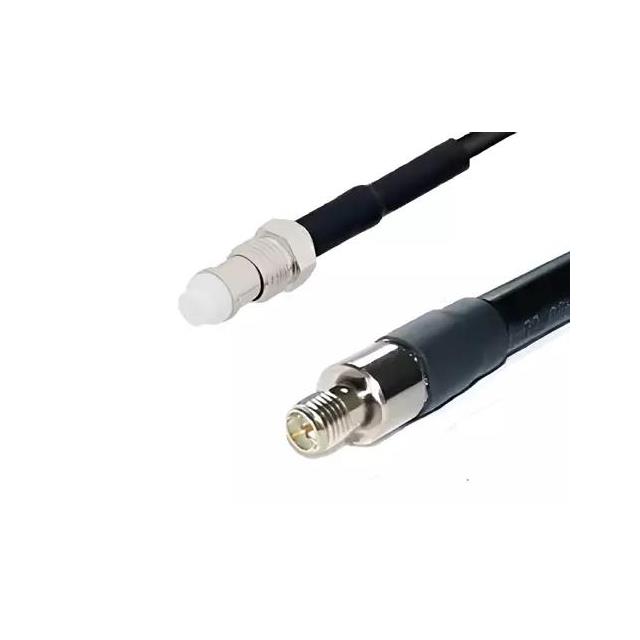

Cable Assembly Coaxial RP-SMA to FME RG-223 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-SFRP-FMEF(QTY:2m) |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | FME Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | RP-SMA, FME |
